by

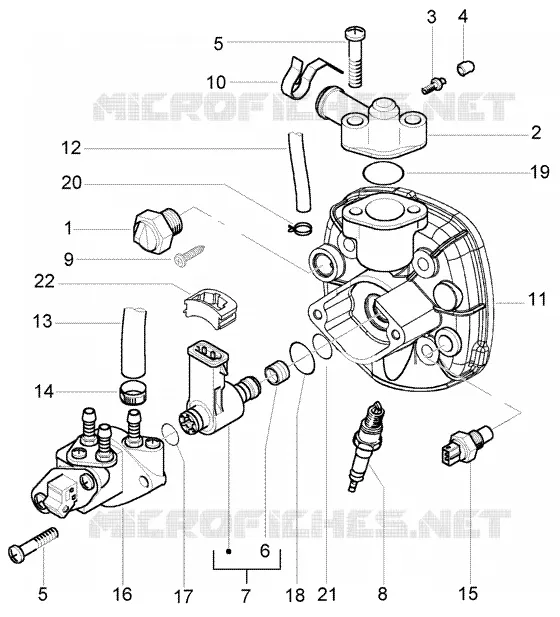

Head
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
Thermostat
483395
$15,32 Unit Price incl. VAT
2
Water outlet union
832262
$2,34 Unit Price incl. VAT
3
Bleed screw
430045
$2,40 Unit Price incl. VAT
4
Bleed valve cap
063435
$0,34 Unit Price incl. VAT
5
TBIC screw
015597
$0,08 Unit Price incl. VAT
6
Gasket ring
834176
$5,73 Unit Price incl. VAT
7
Air injector
829480
$278,10 Unit Price incl. VAT
8
Spark plug RG6YCA
438074
$12,09 Unit Price incl. VAT
9
Self-tapping screw
256756
$0,05 Unit Price incl. VAT
10
Hose clamp
564629
$2,50 Unit Price incl. VAT
11
Cylinder head
830202
Not Available
12
High pressure pipe
433880
$0,86 Unit Price incl. VAT
13
High pressure pipe
830672
$2,30 Unit Price incl. VAT
14
Hose clamp
CM001913
$0,75 Unit Price incl. VAT
15
Sensor
830093
$56,87 Unit Price incl. VAT
16
fuel rail assembly
841308
$334,80 Unit Price incl. VAT
17
O-ring
830433
$0,44 Unit Price incl. VAT
18
O-ring
830434
$1,09 Unit Price incl. VAT
19
O-ring
289514
$0,09 Unit Price incl. VAT
20
Hose clamp
CM002901
$0,09 Unit Price incl. VAT
21
O-ring
830585
Not Available
22
Seal ring
829483
$0,48 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
