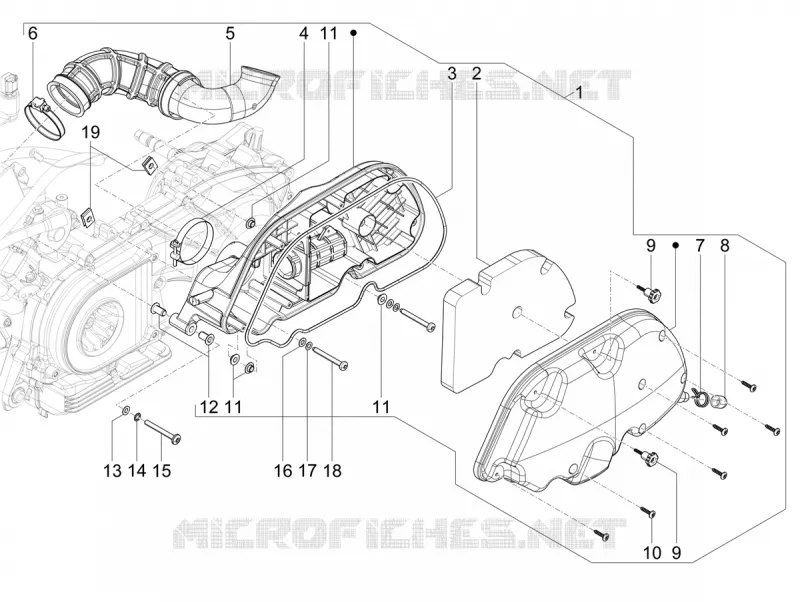

Air filter FOR Vespa GTS 310 E5+ Super Tech FROM 2025

Air filter

1

Boîtier filtre à air compl.

1A027305

$111,57 Unit Price incl. VAT

2

Air box filter

1A025763

Not Available

3

Joint

1A025770

$4,46 Unit Price incl. VAT

4

Collier

1A013032

Not Available

5

Manchon épurateur

1A027325

$27,50 Unit Price incl. VAT

6

Hose clamp

260918

$1,68 Unit Price incl. VAT

7

Hose clamp

CM002920

Not Available

8

Cap

827831

$2,60 Unit Price incl. VAT

9

Air filter closing knob

479132

$10,92 Unit Price incl. VAT

10

Self-tap screw M3x20

258146

$0,25 Unit Price incl. VAT

11

Knurled bushing

830056

$0,34 Unit Price incl. VAT

12

Bushing

830057

$1,01 Unit Price incl. VAT

13

Flat washer 6,4x12x1

003056

$0,08 Unit Price incl. VAT

14

Notched washer 6,6x11x0

012533

$0,67 Unit Price incl. VAT

15

Metric screw torx

CM179306

$2,95 Unit Price incl. VAT

16

Flat washer 6,4x12x1

003056

$0,08 Unit Price incl. VAT

17

Notched washer 6,6x11x0

012533

$0,67 Unit Price incl. VAT

18

Special cap screw M6x55

1B000678

$0,51 Unit Price incl. VAT

19

Plaque élastique M6

CM259203

$0,32 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
