Reduction unit FOR Vespa GTS 310 E5+ Super Tech FROM 2025

FLYWHEEL COVER - OIL FILTER

Throttle body - Injector - Inlet manifold

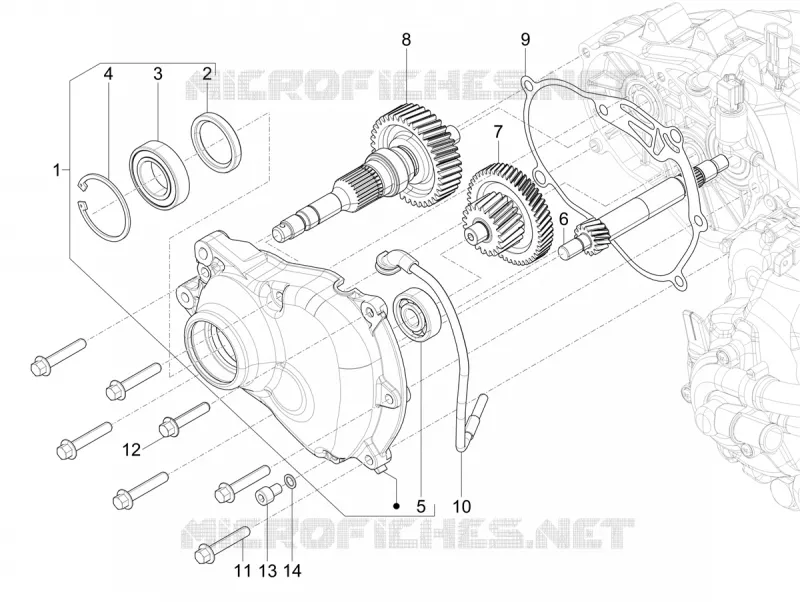

Reduction unit

1

Couvercle de réducteur avec pièces internes

1A0198835

$87,49 Unit Price incl. VAT

2

Gasket ring 38x50x7

83082R

$12,36 Unit Price incl. VAT

3

Radial bearing 30x55x13

83034R

Not Available

4

Circlip

829206

$0,67 Unit Price incl. VAT

5

Radial ball bearing 15x42x13

83018R

$4,46 Unit Price incl. VAT

6

Driven pulley shaft Z=14

8738755

$71,52 Unit Price incl. VAT

7

Arbre de renvoi avec pièces internes

1A025241

$72,26 Unit Price incl. VAT

7

Alberino di rinvio completo

1A028036

$54,86 Unit Price incl. VAT

8

Axe de roue arrière avec pièces internes

1A025243

$92,03 Unit Price incl. VAT

8

Axe de roue arrière avec pièces internes

1A025503

$65,52 Unit Price incl. VAT

9

Gasket

847931

$6,48 Unit Price incl. VAT

10

Tuyau évent réducteur complet

CM162205

$12,96 Unit Price incl. VAT

11

Screw w/ flange M8x45

B016805

$0,50 Unit Price incl. VAT

12

Screw w/ flange M8x40

B016806

$0,48 Unit Price incl. VAT

13

Hex socket screw M8x12

269755

$0,34 Unit Price incl. VAT

14

Washer 8.2x12x1

485703

$0,16 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
