Swinging arm FOR Vespa GTS 310 E5+ Super Tech FROM 2025

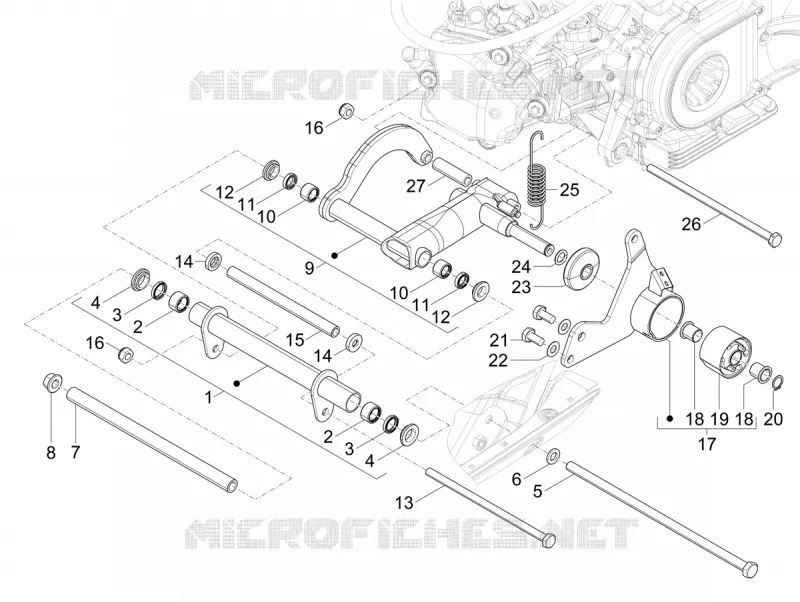

Swinging arm

1

Chassis side swinging arm

5A000479

$50,04 Unit Price incl. VAT

2

Roller cage

600161

$6,98 Unit Price incl. VAT

3

Gasket ring

5A000478

Not Available

4

Bush

598917

$0,67 Unit Price incl. VAT

5

Hex socket screw M12x324

597914

$14,12 Unit Price incl. VAT

6

Washer

266845

$0,50 Unit Price incl. VAT

7

Spacer 290.00 mm

597857

$15,31 Unit Price incl. VAT

8

Nut M12

271740

$0,67 Unit Price incl. VAT

9

Bras oscillant côté moteur complet

1C007702

$203,36 Unit Price incl. VAT

10

Bush

597317

$0,92 Unit Price incl. VAT

11

Gasket ring

1C001341

$1,43 Unit Price incl. VAT

12

Roller cage

597374

Not Available

13

Hex socket screw M10x215

271779

$2,11 Unit Price incl. VAT

14

Spacer

650755

$6,60 Unit Price incl. VAT

15

Spacer 189.00 mm

CM067806

$29,76 Unit Price incl. VAT

16

Self locking nut M10

002440

$0,34 Unit Price incl. VAT

17

Bride de support silentbloc

1C007931

Not Available

18

Bush

273460

$0,75 Unit Price incl. VAT

19

Silent-block

272750

$12,52 Unit Price incl. VAT

20

Circlip

006416

$0,08 Unit Price incl. VAT

21

Bolt

031153

$3,65 Unit Price incl. VAT

22

Washer

709646

Not Available

23

Silent-block

599250

$8,65 Unit Price incl. VAT

24

O-ring

830434

$1,09 Unit Price incl. VAT

25

Spring

599059

$4,82 Unit Price incl. VAT

26

Hex screw M10x225

667827

$4,82 Unit Price incl. VAT

27

Spacer

599077

$6,60 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
