1
Engine displacement
300
2
Model
GTS
3
Year
2023
4
Trim
Vespa GTS 300 Super HPE 4T / 4V ie ABS E5
5
Parts Catalog
Brakes pipes - Calipers (ABS)
6
Parts Diagram
Parts Catalog
Frame/bodywork
by
Wheel huosing - Mudguard

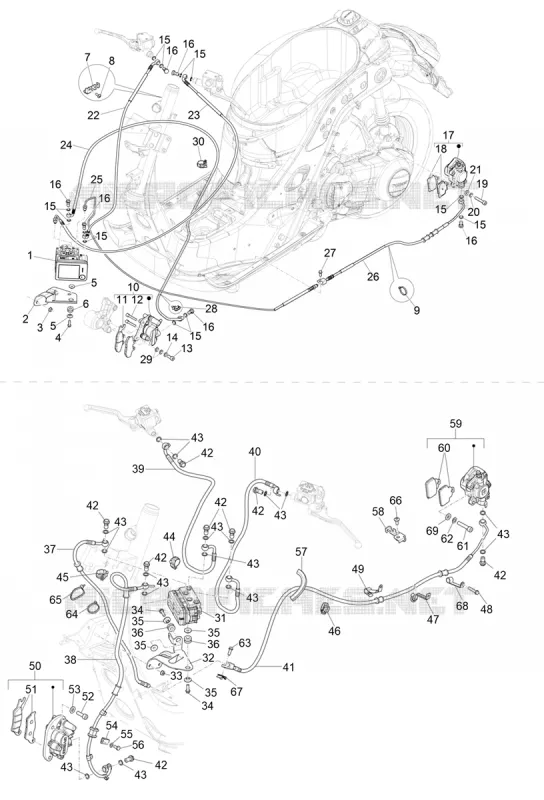

Brakes pipes - Calipers (ABS)
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
15
15
15
15
15
15
16
16
16
16
16
16
17
18
19
20
21
22
23
24
25
26
27
28
28
29
30
31
32
33
34
34
35
35
35
35
36
36
37
38
38
39
40
41
42
42
42
42
42
42
42
43
43
43
43
43
43
43
43
43
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
59
60
61
61
62
63
64
65
66
67
67
68
69
1
ABS electro-hydraulic control unit
1C002747
$1 736,10 Unit Price incl. VAT
2
Fixture rod
1C002710
$17,07 Unit Price incl. VAT
3
Nut
969224
$0,42 Unit Price incl. VAT
4
Hex screw M6x20
018639
$0,16 Unit Price incl. VAT
5
Spacer
1C000870
$0,92 Unit Price incl. VAT
6
Pad
939278
$0,34 Unit Price incl. VAT
7
Bracket with up
649635
$6,30 Unit Price incl. VAT
8
Screw M6x16
272836
$3,70 Unit Price incl. VAT
9
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
10
Pince frein avant
CM294407
$150,62 Unit Price incl. VAT
11
Brake pads couple
668021
$105,58 Unit Price incl. VAT
12
Brake supp. plate pin
666139
$7,56 Unit Price incl. VAT
13
Hex socket screw M8x40
149104
$0,51 Unit Price incl. VAT
14
Spring washer
709047
$0,08 Unit Price incl. VAT
15
Gasket
127927
$0,25 Unit Price incl. VAT
16
Special screw
1C002059R
$2,02 Unit Price incl. VAT
17
Étrier de frein hydraulique
CM294804
$121,08 Unit Price incl. VAT
18
Paire de plaquettes de frein
1C006586
$49,43 Unit Price incl. VAT
19
screw
319532
$3,65 Unit Price incl. VAT
20
Spring washer
709047
$0,08 Unit Price incl. VAT
21
Flat washer 15x8,4x1,5
003058
$0,08 Unit Price incl. VAT
22
Tuyau maître-cylindre de frein D-unité ABS
1C003741
$27,07 Unit Price incl. VAT
23
Durit de frein maître-cylindre G. - unité ABS
1C003739
Not Available
24
Tuyau de frein unité ABS-étrier de frein avant
1C003699
Not Available
25
Durit de frein arrière - jonction - unité ABS
1C003738
Not Available
26
Tuyaux frein arrière
1C003737
Not Available
27
Screw w/ flange M6x16
B016777
$0,16 Unit Price incl. VAT
28
Hose clamp
298729
$0,34 Unit Price incl. VAT
28
Strap
216369
Not Available
29
Flat washer 8,2x17x2,5
828961
$0,28 Unit Price incl. VAT
30
Non return spring L=23
CM006908
$0,50 Unit Price incl. VAT
31
Centrale ABS
1C006399
$620,70 Unit Price incl. VAT
32
Staffa fissaggio centralina ABS
1C006400
$11,35 Unit Price incl. VAT
33
Self locking nut M6
241936
$0,08 Unit Price incl. VAT
34
Hex screw M6x20
018639
$0,16 Unit Price incl. VAT
35
Spacer
1C000253
$0,34 Unit Price incl. VAT
36
Pad
939278
$0,34 Unit Price incl. VAT
37
Durit de frein arrière - jonction - unité ABS
1C006497
$40,78 Unit Price incl. VAT
38
Tuyau de frein unité ABS-étrier de frein avant
1C006496
Not Available
38
Tuyau de frein unité ABS-étrier de frein avant
1C007202
$85,68 Unit Price incl. VAT
39
ABS unit left brake pump pipe
1C006495
$42,54 Unit Price incl. VAT
40
Tuyau maître-cylindre de frein D-unité ABS
1C006494
$44,39 Unit Price incl. VAT
41
Tuyaux frein arrière
1C006498
$61,25 Unit Price incl. VAT
42
Special screw
1C002059R
$2,02 Unit Price incl. VAT
43
Gasket
127927
$0,25 Unit Price incl. VAT
44
Non return spring L=23
CM006908
$0,50 Unit Price incl. VAT
45
Non return spring
CM006912
$0,42 Unit Price incl. VAT
46
Pipes/cables retainer spring
CM013202
$1,10 Unit Price incl. VAT
47
Hose clamp
1C001520
$1,09 Unit Price incl. VAT
48
Hose clamp
564761
$0,38 Unit Price incl. VAT
49
Hose clamp
1C002845
$6,60 Unit Price incl. VAT
50
Pince frein avant
CM256505
$101,89 Unit Price incl. VAT
51
Brake pads couple
1C000760
$33,08 Unit Price incl. VAT
52
Cylindrical screw with hexagon socket M8x25
1C003712
$0,50 Unit Price incl. VAT
53
Rondelle plate
1C006600
$0,34 Unit Price incl. VAT
54
Collier
1C007193
$1,00 Unit Price incl. VAT
55
Spring washer 12x6,4x0,5
006976
$0,08 Unit Price incl. VAT
56
Screw m6x12
031086
$0,08 Unit Price incl. VAT
57
Edge protection L=100
CM023903
$0,78 Unit Price incl. VAT
58
Bracket with up
649635
$6,30 Unit Price incl. VAT
59
Étrier de frein hydraulique
CM294804
$121,08 Unit Price incl. VAT
59
Etrier de frein Heng Tong
CM294808
$116,55 Unit Price incl. VAT
60
Paire de plaquettes de frein
1C006586
$49,43 Unit Price incl. VAT
61
Vis M8x40
1C006164
$1,26 Unit Price incl. VAT
61
Hex socket screw M8x40
149104
$0,51 Unit Price incl. VAT
62
Spring washer
709047
$0,08 Unit Price incl. VAT
63
Flat washer 8,2x17x2,5
828961
$0,28 Unit Price incl. VAT
64
Screw w/ flange M6x16
B016777
$0,16 Unit Price incl. VAT
65
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
66
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
67
Screw M6x16
272836
$3,70 Unit Price incl. VAT
67
Screw M6x16
CM179301
$0,25 Unit Price incl. VAT
68
Spring plate M6
254485
$0,34 Unit Price incl. VAT
69
Screw w/ flange M6x30
B016792
$0,25 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
