1
Engine displacement
300
2
Model
GTS
3
Year
2023
4
Trim
Vespa GTS 300 Super HPE 4T / 4V ie ABS E5
5
Parts Catalog

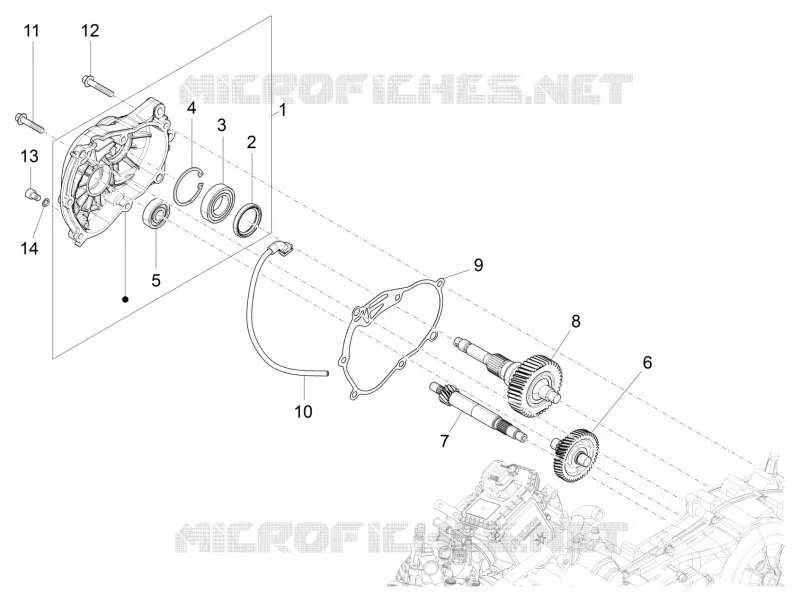

Reduction unit
6
Parts Diagram
Parts Catalog
HEADLIGHT - INDICATORS
by
TAIL LIGHTS - INDICATORS
Reduction unit
1
1
1
2
3
4
5
6
6
7
8
8
9
10
11
12
13
14
1
Side cover
8481875
$75,05 Unit Price incl. VAT
1
Couvercle de réducteur avec pièces internes
1A0198835
$87,49 Unit Price incl. VAT
2
Gasket ring 38x50x7
83082R
$12,36 Unit Price incl. VAT
3
Bearing 30.55.13
1A005376R
$14,12 Unit Price incl. VAT
4
Circlip
829206
$0,67 Unit Price incl. VAT
5
Radial ball bearing 15x42x13
83018R
$4,46 Unit Price incl. VAT
6
Transmission shaft Z=21/50
8410015
Not Available
6
Arbre trnsmission
1A020476
$118,97 Unit Price incl. VAT
7
Driven pulley shaft Z=14
8738755
$71,52 Unit Price incl. VAT
8
Axe de roue arrière avec pièces internes
1A020472
$190,62 Unit Price incl. VAT
8
Axe roue ar.
1A0116235
$228,25 Unit Price incl. VAT
9
Gasket
847931
$6,48 Unit Price incl. VAT
10
Reduction unit breather pipe assembly
CM162202
$24,21 Unit Price incl. VAT
11
Screw w/ flange M8x40
B016806
$0,48 Unit Price incl. VAT
12
Screw w/ flange M8x45
B016805
$0,50 Unit Price incl. VAT
13
Hex socket screw M8x12
269755
$0,34 Unit Price incl. VAT
14
Washer 8.2x12x1
485703
$0,16 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
