Parts Catalog
Tank
6
Parts Diagram
Parts Catalog
EXHAUST
by
CENTRAL COVER - FOOTRESTS

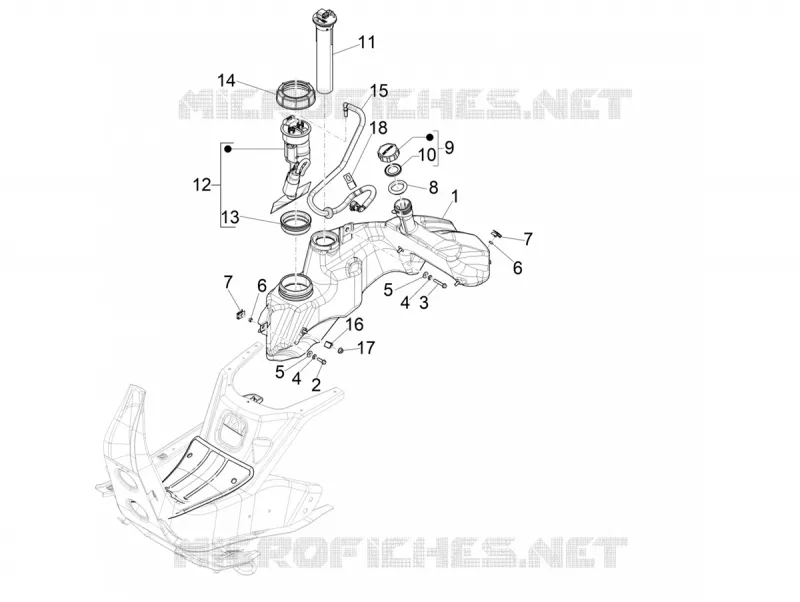

Tank
1
2
3
4
4
5
5
6
6
7
7
8
9
10
11
12
13
14
15
15
16
17
18
1
Fuel tank
1B000533
Not Available
2
Hex screw M6x20
018639
$0,16 Unit Price incl. VAT
3
screw M6x35
414838
$0,67 Unit Price incl. VAT
4
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
5
Flat washer 16x6,5x1,5
013880
$0,08 Unit Price incl. VAT
6
Spacer
623162
$0,50 Unit Price incl. VAT
7
Spring plate M6
254485
$0,34 Unit Price incl. VAT
8
Fuel tank gasket
1B004806
$4,82 Unit Price incl. VAT
9
Plug
656022
$8,74 Unit Price incl. VAT
10
Tank cover gasket
656021
$8,66 Unit Price incl. VAT
11
Indicator fuel level
CM025707
$86,99 Unit Price incl. VAT
12
Pompe à carburant
1D003554R
Not Available
13
Gasket
656003
$15,89 Unit Price incl. VAT
14
Ring nut
576546
$4,71 Unit Price incl. VAT
15
Tuyau de carburant avec raccords
1B009604R
$17,78 Unit Price incl. VAT
15
Fuel pipe complete with joints
1B004592R
$51,49 Unit Price incl. VAT
16
Hose clamp
1B001615
$3,65 Unit Price incl. VAT
17
Self locking nut
012138
$0,17 Unit Price incl. VAT
18
Hose clamp
623743
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
