1
Engine displacement
150
2
Model
SPRINT
3
Year
2021
4
Trim
Sprint 150 Euro 5 Racing Sixties
5
Parts Catalog
Oil pump
6

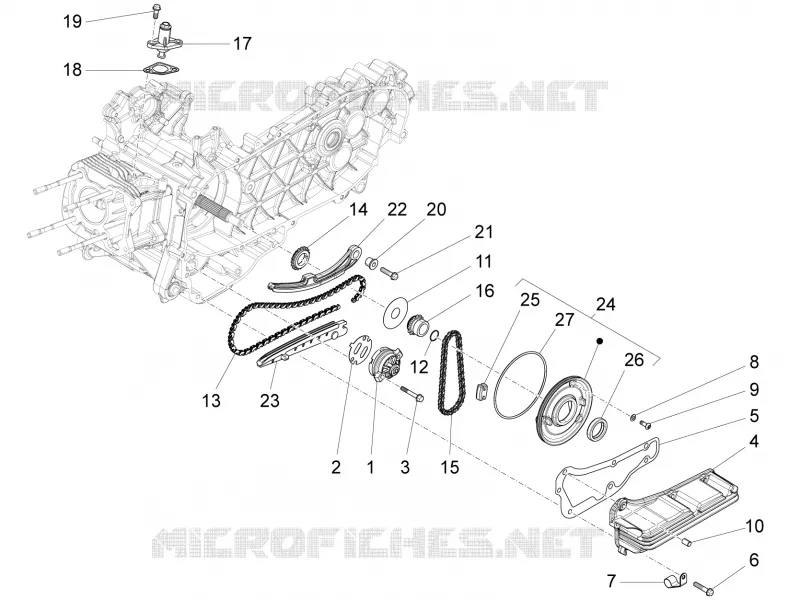

Parts Diagram
Parts Catalog
Helmet huosing - Undersaddle
by
Meter combination - Cruscotto
Oil pump
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
23
24
24
25
25
26
26
27
27
1
Oil pump assembly
82948R
$14,37 Unit Price incl. VAT
2
Oil pump/crankcase gasket
B015460
$0,50 Unit Price incl. VAT
3
Screw w/ flange M5x35
829593
$0,50 Unit Price incl. VAT
4
Pan oil
B013437
$22,19 Unit Price incl. VAT
5
Sump gasket
B014152
$2,02 Unit Price incl. VAT
6
Screw w/ flange M6x30
B016792
$0,25 Unit Price incl. VAT
7
Hose clamp
1C001517
$3,65 Unit Price incl. VAT
8
Plain washer
487937
$0,09 Unit Price incl. VAT
9
Torx Screw M5x12
B014598
$0,25 Unit Price incl. VAT
10
Locating dowel Ø7,5x12
277916
$0,34 Unit Price incl. VAT
11
Oil seal washer
B015450
$3,65 Unit Price incl. VAT
12
O-Ring seal ring
B015451
$0,50 Unit Price incl. VAT
13
Camshaft chain
1A003586R
$19,92 Unit Price incl. VAT
14
Timing chain pinion
82782R
$7,06 Unit Price incl. VAT
15
Oil pump chain
B015459
$4,54 Unit Price incl. VAT
16
Oil pump control pinion
82783R
$7,99 Unit Price incl. VAT
17
Chain tensioner bracket
289919
Not Available
18
Cylinder/chain tensioner gasket
B015444
$4,82 Unit Price incl. VAT
19
Screw w/ flange M6x16
B016777
$0,16 Unit Price incl. VAT
20
Chain tensioner rod spacer
B015445
$0,76 Unit Price incl. VAT
21
Screw w/ flange M6x25
B016774
$0,34 Unit Price incl. VAT
22
Chain tensioner rod
1A006293
$13,53 Unit Price incl. VAT
23
Chain tensioner sliding block
879459
$6,47 Unit Price incl. VAT
24
Timing system cover
1A0033175
$40,10 Unit Price incl. VAT
25
Oil pump chain drift
434345
$2,77 Unit Price incl. VAT
26
Gasket ring 24.35.7
1A005743
$10,42 Unit Price incl. VAT
27
O-Ring seal ring
B015449
$4,96 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
