1
Engine displacement
150
2
Model
SPRINT
3
Year
2021
4
Trim
Sprint 150 Euro 5 Racing Sixties
5
Parts Catalog
Air filter
6

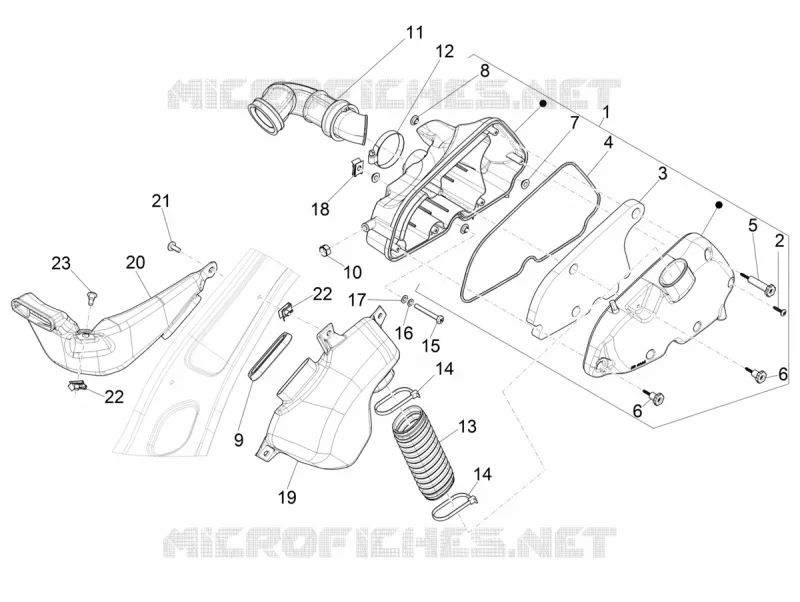

Parts Diagram
Parts Catalog
Stater - Electric starter
by
Reduction unit
Air filter
1
2
3
3
4
5
6
6
7
8
9
10
11
12
13
14
14
15
16
17
18
19
20
21
22
22
23
1
Epurateur air complet
1A018348
$39,14 Unit Price incl. VAT
2
Self-tap screw M3x20
258146
$0,25 Unit Price incl. VAT
3
Filtre air PREMIUM
B0180700P
$18,90 Unit Price incl. VAT
4
Packing
B018071
$4,82 Unit Price incl. VAT
5
Knob
B018204
$12,86 Unit Price incl. VAT
6
Air filter closing knob
479132
$10,92 Unit Price incl. VAT
7
Knurled bushing
830056
$0,34 Unit Price incl. VAT
8
Knurled bushing
1A001516
$11,66 Unit Price incl. VAT
9
Gasket
675421
$4,82 Unit Price incl. VAT
10
Hose clamp
CM001904
$0,75 Unit Price incl. VAT
11
Manchon épurateur
1A018442
$15,13 Unit Price incl. VAT
12
Hose clamp
614188
$2,61 Unit Price incl. VAT
13
Intake hose
672660
$5,38 Unit Price incl. VAT
14
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
15
Special cap screw M6x55
1B000678
$0,51 Unit Price incl. VAT
16
Notched washer 6,6x11x0
012533
$0,67 Unit Price incl. VAT
17
Flat washer
006125
$0,16 Unit Price incl. VAT
18
Spring plate M6
254485
$0,34 Unit Price incl. VAT
19
Intake chamber
1B000247
$49,04 Unit Price incl. VAT
20
Intake pipe
1B000248
$51,49 Unit Price incl. VAT
21
screw
CM179202
$0,25 Unit Price incl. VAT
22
Spring plate M6
254485
$0,34 Unit Price incl. VAT
23
Screw M6x16
CM179301
$0,25 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
