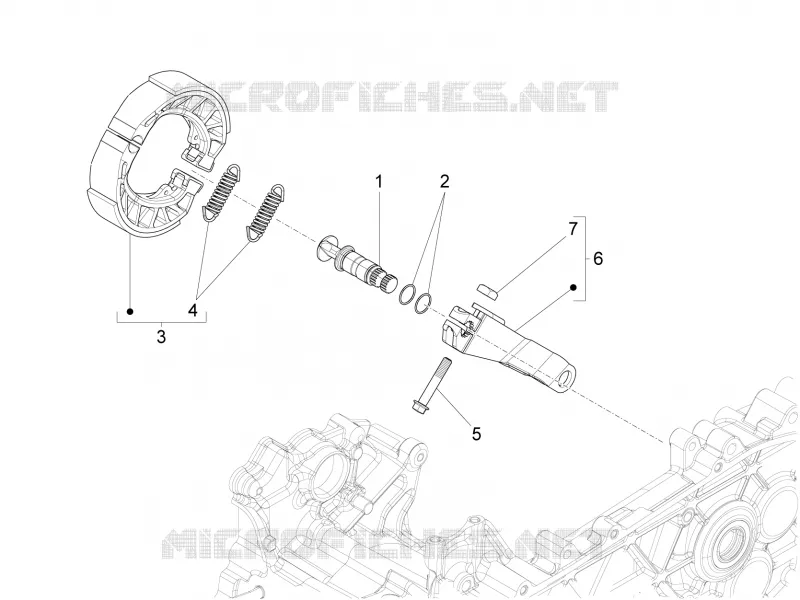

REAR BRAKE - SHOES
1
1
2
2
3
3
4
4
5
5
6
6
7
7
1
Brake lever shaft
B017604
$33,81 Unit Price incl. VAT
2
O-Ring seal ring
B016477
$0,17 Unit Price incl. VAT
3
Pair of Rear brake shoes
56294R5
$49,95 Unit Price incl. VAT
4
Brake shoes return spring
647384
$1,43 Unit Price incl. VAT
5
screw M6x35
414838
$0,67 Unit Price incl. VAT
6
Rear brake lever
1C002243
$21,20 Unit Price incl. VAT
7
Square nut
828862
$2,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
