1
Engine displacement
150
2
Model
SPRINT
3
Year
2021
4
Trim
Sprint 150 4T 3V iGet Euro 5 ABS
5
Parts Catalog
Brakes pipes - Calipers (ABS)
6

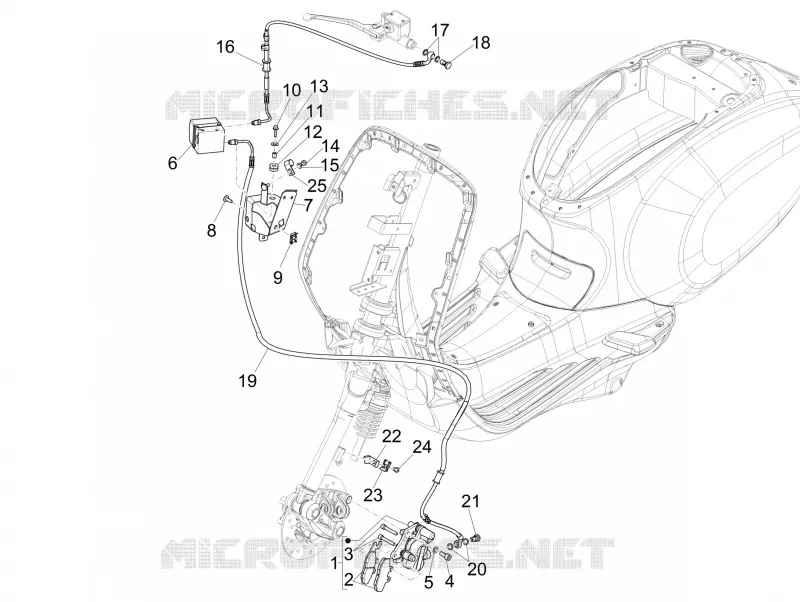

Parts Diagram
Parts Catalog
by
Rocking levers support unit
Brakes pipes - Calipers (ABS)
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
23
24
24
25
25
1
Brake caliper Heng Tong
CM068301
Not Available
2
Brake pads couple Heng Tong
647078
$35,62 Unit Price incl. VAT
3
Brake supp. plate pin
666139
$7,56 Unit Price incl. VAT
4
screw M8x20
599009
$3,65 Unit Price incl. VAT
5
Spring washer
709047
$0,08 Unit Price incl. VAT
6
Unité de commande électro-hydraulique ABS
1C005733
$470,86 Unit Price incl. VAT
7
Control unit sup. bracket
1C000431
$31,97 Unit Price incl. VAT
8
Screw M6x16
CM179301
$0,25 Unit Price incl. VAT
9
Spring plate M6
254485
$0,34 Unit Price incl. VAT
10
screw M5x21
015856
$0,16 Unit Price incl. VAT
11
Spacer
1C000870
$0,92 Unit Price incl. VAT
12
Pad
939278
$0,34 Unit Price incl. VAT
13
Washer 5.3x10x10
006965
$0,08 Unit Price incl. VAT
14
Nut M6
020106
$0,08 Unit Price incl. VAT
15
Spring washer 12x6,4x0,5
006976
$0,08 Unit Price incl. VAT
16
ABS unit - right brake pump pipe
1C001022R
$42,39 Unit Price incl. VAT
17
Gasket
127927
$0,25 Unit Price incl. VAT
18
Special screw
1C002059R
$2,02 Unit Price incl. VAT
19
Tuyau unité ABS étrier avant
1C004101R
Not Available
20
Gasket
127927
$0,25 Unit Price incl. VAT
21
Special screw
1C002059R
$2,02 Unit Price incl. VAT
22
Wiring clip
1C000585
$2,95 Unit Price incl. VAT
23
Spring plate M6
254485
$0,34 Unit Price incl. VAT
24
Hex socket screw M6x12
274369
$0,17 Unit Price incl. VAT
25
Collier serre-câbles
1C002387
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
