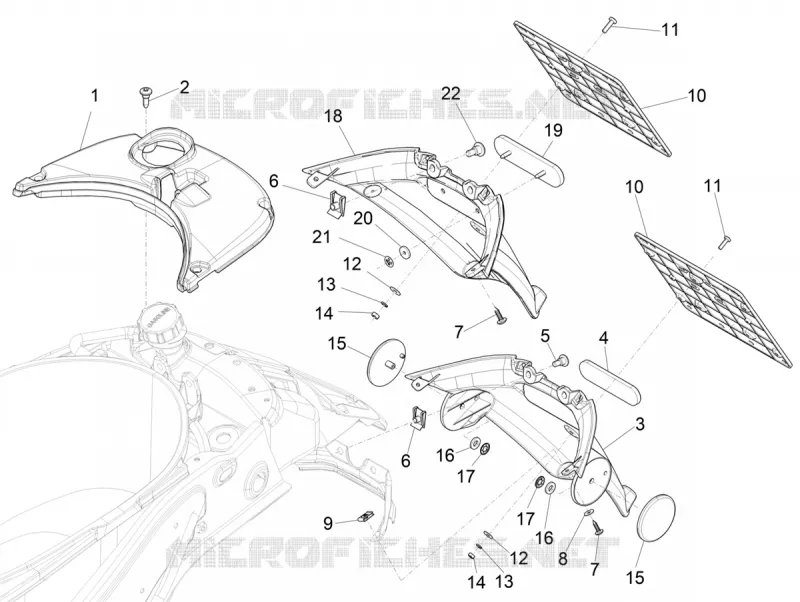

Rear cover - Splash guard
1
2
3
4
5
6
6
7
7
8
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
19
20
21
22
1
Tank cover
673629
$15,22 Unit Price incl. VAT
2
Metric screw M6x22
CM179201
$0,34 Unit Price incl. VAT
3
Rear protection
676206000C
$10,63 Unit Price incl. VAT
4
Rear retroreflector
58233R5
$2,60 Unit Price incl. VAT
5
Self tapping screw 4,2x16
015911
$2,25 Unit Price incl. VAT
6
Spring plate M6
254485
$0,34 Unit Price incl. VAT
7
Screw M6x16
CM179301
$0,25 Unit Price incl. VAT
8
Washer 4,5x12x1
016670
$0,09 Unit Price incl. VAT
9
Plate
CM017408
$0,25 Unit Price incl. VAT
10
Porte-plaque
1B006821
Not Available
11
screw M4x14
018591
Not Available
12
Flat washer 4,2x7,6x0,9
016404
$0,42 Unit Price incl. VAT
13
Flat washer 4,2x12x1
013763
$0,08 Unit Price incl. VAT
14
Nut M4
020104
$1,26 Unit Price incl. VAT
15
Reflector
290315
$7,94 Unit Price incl. VAT
16
Spacer
479882
$0,67 Unit Price incl. VAT
17
Plate
180859
$2,95 Unit Price incl. VAT
18
Rear protection
1B0040820000C
$25,82 Unit Price incl. VAT
19
Reflector
5A000498
$4,12 Unit Price incl. VAT
20
Spacer
5A000387
$0,50 Unit Price incl. VAT
21
Plate
5A000388
$0,42 Unit Price incl. VAT
22
Self tapping screw D4.2x16
CM178601
$0,16 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
