1
Engine displacement
50
2
Model
PRIMAVERA
3
Year
2020
4
Trim
Primavera 50 Euro 4
5
Parts Catalog
Rear suspension - Shock absorber/s
6
Parts Diagram
Parts Catalog
Wheel huosing - Mudguard
by
Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
Rear suspension - Shock absorber/s
1
1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
1
Rear shock absorber cpl.
668480
$97,20 Unit Price incl. VAT
1
Amortisseur AR cpl.
1C002722
$72,95 Unit Price incl. VAT
2
Upper buffer
178150
$0,92 Unit Price incl. VAT
3
Flat washer
267038
$0,67 Unit Price incl. VAT
4
Notched washer 14x8,3x1,8
012540
$0,08 Unit Price incl. VAT
5
Nut M8
021108
$0,25 Unit Price incl. VAT
6
Screw w/ flange M10
268158
$1,26 Unit Price incl. VAT
7
Self locking nut M10
002440
$0,34 Unit Price incl. VAT

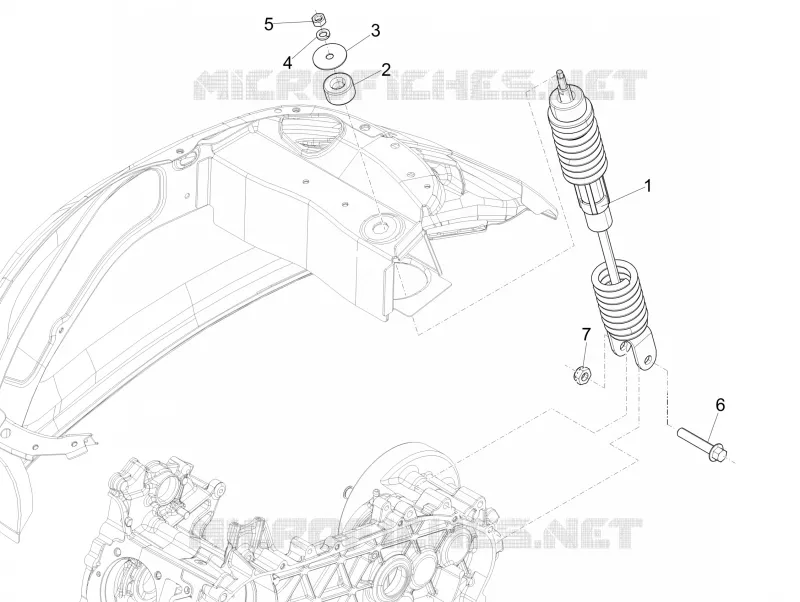

Find the detailed Rear suspension - Shock absorber/s GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
