1
Engine displacement
50
2
Model
PRIMAVERA
3
Year
2020
4
Trim
Primavera 50 Euro 4
5
Parts Catalog
Driven pulley
6
Parts Diagram
Parts Catalog
Fork/steering tube - Steering bearing unit
by
Cdi magneto assy
Driven pulley
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
1
Driven pulley complete with clutch
CM270404
$144,73 Unit Price incl. VAT
2
Complete fixed secondary pulley
4795526
$162,29 Unit Price incl. VAT
3
Ball bearing
82655R
$27,40 Unit Price incl. VAT
4
Ring
006624
$2,99 Unit Price incl. VAT
5
Roller cage
289952
$5,97 Unit Price incl. VAT
6
Pin
482766
$3,70 Unit Price incl. VAT
7
Adjustable pulley, half
829805
$48,60 Unit Price incl. VAT
8
Gasket ring
289950
$9,17 Unit Price incl. VAT
9
Gasket
289840
$1,26 Unit Price incl. VAT
10
Pulley side cap
483443
$3,70 Unit Price incl. VAT
11
Variator spring
478028
$17,60 Unit Price incl. VAT
12
Clutch side cap
487935
$20,91 Unit Price incl. VAT
13
Complete centrifugal clutch assembly
CM270505
$71,55 Unit Price incl. VAT
14
Ring nut
289955
$8,58 Unit Price incl. VAT
15
Complete clutch drum
1A004011
$43,20 Unit Price incl. VAT
16
Flanged nut M10x1,25
289519
$0,56 Unit Price incl. VAT

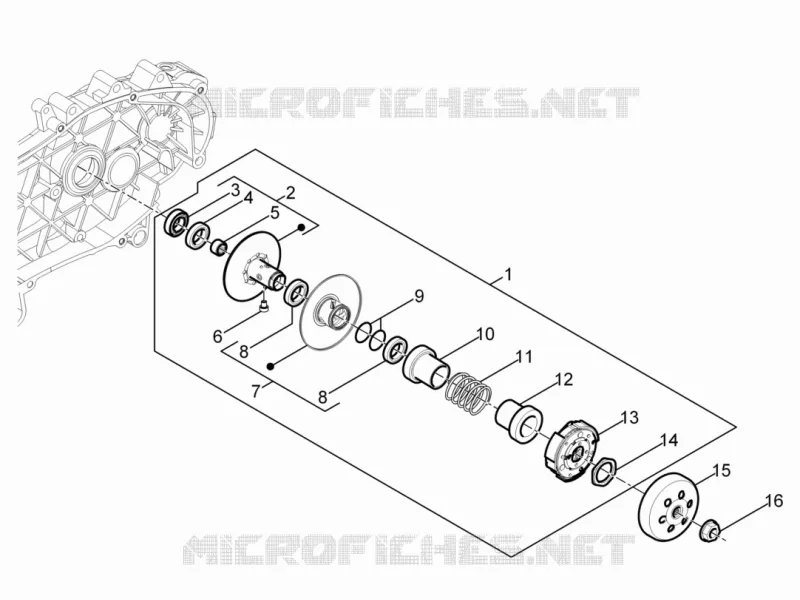

Find the detailed Driven pulley GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
