1
Engine displacement
50
2
Model
PRIMAVERA
3
Year
2020
4
Trim
Primavera 50 Euro 4
5
Parts Catalog
Rear cover - Splash guard
6
Parts Diagram
Parts Catalog
Handlebars - Master cil.
by
ENGINE ASSEMPLY

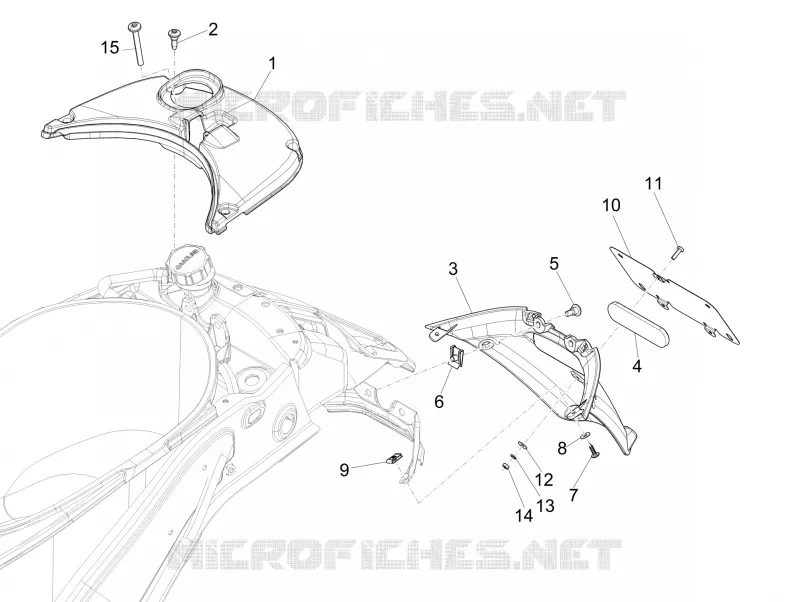

Rear cover - Splash guard
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
1
Tank cover
1B000320
$15,22 Unit Price incl. VAT
2
Metric screw M6x22
CM179201
$0,34 Unit Price incl. VAT
3
Rear protection
1B0040820000C
$25,82 Unit Price incl. VAT
3
Protection arrière
1B00055150000C
Not Available
4
Rear retroreflector
58233R5
$2,60 Unit Price incl. VAT
5
Screw M6x16
CM179301
$0,25 Unit Price incl. VAT
6
Spring plate M6
254485
$0,34 Unit Price incl. VAT
7
Self tapping screw 4,2x16
015911
$2,25 Unit Price incl. VAT
8
Washer 4,5x12x1
016670
$0,09 Unit Price incl. VAT
9
Plate
CM017408
$0,25 Unit Price incl. VAT
10
Number plate holder
582691
$4,96 Unit Price incl. VAT
11
Screw M4x12
015996
$0,08 Unit Price incl. VAT
12
Flat washer 4,2x7,6x0,9
016404
$0,42 Unit Price incl. VAT
13
Flat washer 4,2x12x1
013763
$0,08 Unit Price incl. VAT
14
Nut M4
020104
$1,26 Unit Price incl. VAT
15
Metric screw torx
CM179306
$2,95 Unit Price incl. VAT

Find the detailed Rear cover - Splash guard GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
