1
Engine displacement
125
2
Model
PRIMAVERA
3
Year
2023
4
Trim
Primavera 125 4T 3V ie Euro 5 ABS
5
Parts Catalog

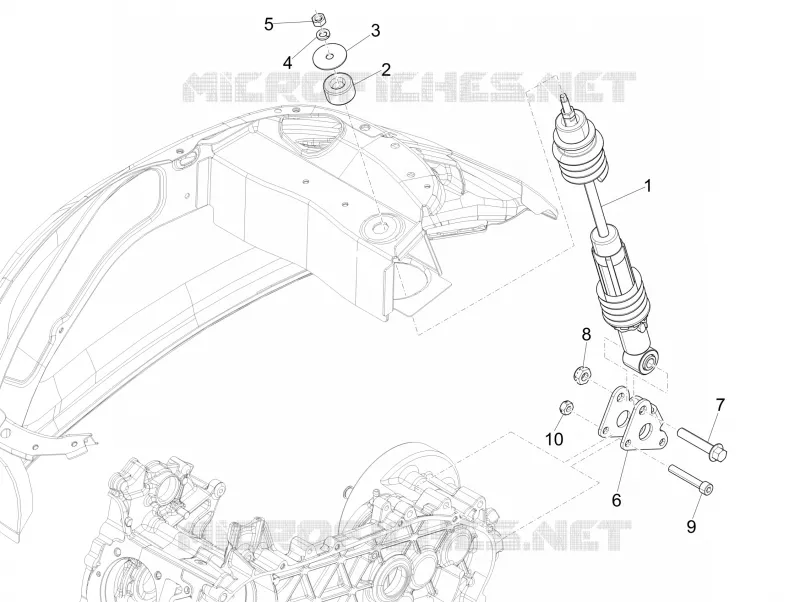

Rear suspension - Shock absorber/s
6
Parts Diagram
Parts Catalog
Meter combination - Cruscotto
by
Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
Rear suspension - Shock absorber/s
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
1
Amortisseur arrière complet
1C003149
$99,90 Unit Price incl. VAT
2
Upper buffer
178150
$0,92 Unit Price incl. VAT
3
Flat washer
267038
$0,67 Unit Price incl. VAT
4
Spring washer 13,75x8,15x4,5
016408
$0,08 Unit Price incl. VAT
5
Nut M8
021108
$0,25 Unit Price incl. VAT
6
Rear Shock absorber fixing bracket
667872
$14,30 Unit Price incl. VAT
7
Screw w/ flange M10
268158
$1,26 Unit Price incl. VAT
8
Self locking nut M10
002440
$0,34 Unit Price incl. VAT
9
Hex socket screw M8x50
844483
$0,67 Unit Price incl. VAT
10
Nut M8
020008
$0,08 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
