1
Engine displacement
125
2
Model
PRIMAVERA
3
Year
2023
4
Trim
Primavera 125 4T 3V ie Euro 5 ABS
5
Parts Catalog
Air filter
6
Parts Diagram
Parts Catalog
Cylinder-piston-wrist pin unit
by
Driven pulley
Air filter
1
2
3
3
4
5
6
6
7
8
9
10
11
12
13
14
14
15
16
17
18
19
20
21
22
22
23
1
Epurateur air complet
1A018348
$39,14 Unit Price incl. VAT
2
Self-tap screw M3x20
258146
$0,25 Unit Price incl. VAT
3
Filtre air PREMIUM
B0180700P
$18,90 Unit Price incl. VAT
4
Packing
B018071
$4,82 Unit Price incl. VAT
5
Knob
B018204
$12,86 Unit Price incl. VAT
6
Air filter closing knob
479132
$10,92 Unit Price incl. VAT
7
Knurled bushing
830056
$0,34 Unit Price incl. VAT
8
Knurled bushing
1A001516
$11,66 Unit Price incl. VAT
9
Gasket
675421
$4,82 Unit Price incl. VAT
10
Hose clamp
CM001904
$0,75 Unit Price incl. VAT
11
Manchon épurateur
1A018442
$15,13 Unit Price incl. VAT
12
Hose clamp
614188
$2,61 Unit Price incl. VAT
13
Intake hose
672660
$5,38 Unit Price incl. VAT
14
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
15
Special cap screw M6x55
1B000678
$0,51 Unit Price incl. VAT
16
Notched washer 6,6x11x0
012533
$0,67 Unit Price incl. VAT
17
Flat washer
006125
$0,16 Unit Price incl. VAT
18
Spring plate M6
254485
$0,34 Unit Price incl. VAT
19
Intake chamber
1B000247
$49,04 Unit Price incl. VAT
20
Intake pipe
1B000248
$51,49 Unit Price incl. VAT
21
screw
CM179202
$0,25 Unit Price incl. VAT
22
Spring plate M6
254485
$0,34 Unit Price incl. VAT
23
Screw M6x16
CM179301
$0,25 Unit Price incl. VAT

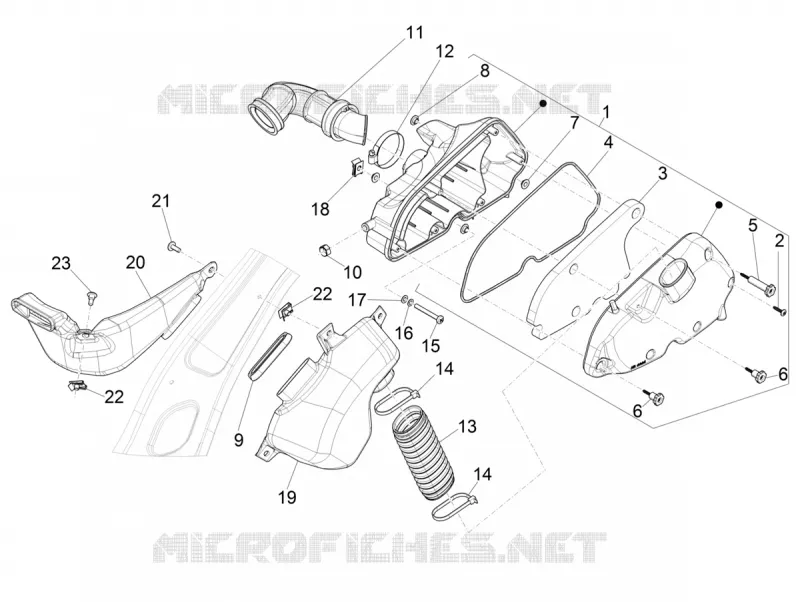

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
