1
Engine displacement
125
2
Model
PRIMAVERA
3
Year
2023
4
Trim
Primavera 125 4T 3V ie Euro 5 ABS
5
Parts Catalog

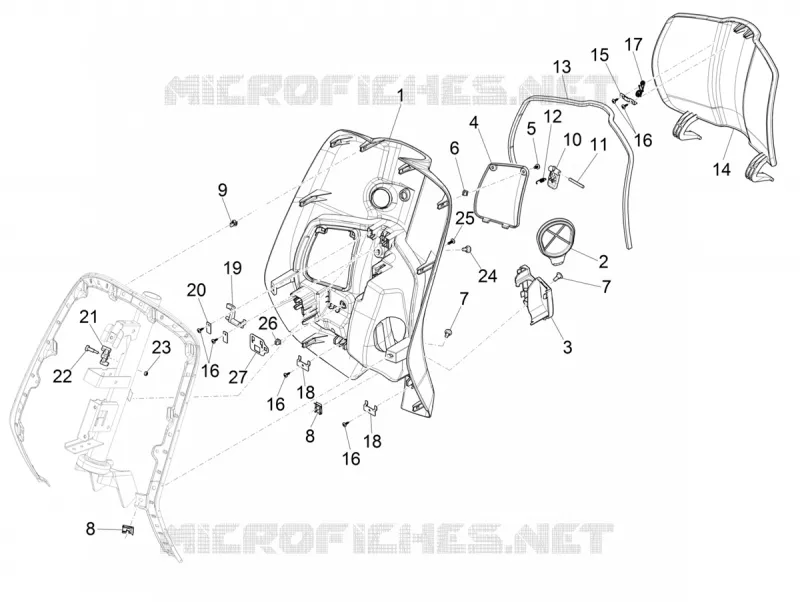

Front glove-box - Knee-guard panel
6
Parts Diagram
Parts Catalog
Tank
by
Front luggage rack
Front glove-box - Knee-guard panel
1
1
1
1
1
1
1
1
1
1
1
1
1
2
3
4
5
6
7
7
8
8
9
10
11
12
13
14
14
14
14
14
14
14
14
14
14
14
14
14
14
15
16
16
16
16
17
18
18
19
20
21
22
23
24
25
26
27
1
Coffre avant
1B003333000NV
$278,81 Unit Price incl. VAT
1
Front glove comp.
1B003333000XN2
$278,81 Unit Price incl. VAT
1
Coffre avant
1B003333000G03
$258,27 Unit Price incl. VAT
1
Front glove comp.
1B003333
$223,79 Unit Price incl. VAT
1
Coffre avant
1B003333000A11
$258,27 Unit Price incl. VAT
1
Front glove comp.
1B003333000R7
$278,81 Unit Price incl. VAT
1
Coffre avant
1B003333000G02
$154,57 Unit Price incl. VAT
1
Coffre avant
1B003333000LG
$258,27 Unit Price incl. VAT
1
Coffre avant
1B003333000VK
$254,56 Unit Price incl. VAT
1
Coffre avant
1B003333000G01
$258,27 Unit Price incl. VAT
1
Coffre avant
1B003333000DQ
$165,48 Unit Price incl. VAT
1
Coffre avant
1B003333000DK
$278,81 Unit Price incl. VAT
1
Front glove comp.
1B003333000BR
$278,81 Unit Price incl. VAT
2
Plastic plug
657135
$5,38 Unit Price incl. VAT
3
Lh pocket
1B0035230000C
$17,07 Unit Price incl. VAT
4
Flap
1B000588
$31,97 Unit Price incl. VAT
5
Self tapping screw D4.2x13
CM178603
$0,16 Unit Price incl. VAT
6
Expansion plug
157716
$0,08 Unit Price incl. VAT
7
Metric screw M6x22
CM179201
$0,34 Unit Price incl. VAT
8
Spring plate M6
254485
$0,34 Unit Price incl. VAT
9
Gripper clip
D9004468091
$0,34 Unit Price incl. VAT
10
Lever
577861
$1,35 Unit Price incl. VAT
11
Pin
577400
$5,38 Unit Price incl. VAT
12
Spring
577399
$2,61 Unit Price incl. VAT
13
Gasket
297275
$5,38 Unit Price incl. VAT
14
Porte de coffre peinte
1B006824000VK
Not Available
14
Porte de coffre peinte
1B006824000BR
$125,20 Unit Price incl. VAT
14
Porte de coffre peinte
1B006824000LG
Not Available
14
Top case door
673618
Not Available
14
Porte de coffre peinte
1B006824000LD
Not Available
14
Porte de coffre peinte
1B006824000XN2
Not Available
14
Porte de coffre peinte
1B006824000DK
Not Available
14
Porte de coffre peinte
1B006824000G01
Not Available
14
Porte de coffre peinte
1B006824000A11
Not Available
14
Porte de coffre peinte
1B006824000G03
Not Available
14
Porte de coffre peinte
1B006824000R7
$101,68 Unit Price incl. VAT
14
Porte de coffre peinte
1B006824000DQ
Not Available
14
Porte de coffre peinte
1B006824000G02
Not Available
14
Porte de coffre peinte
1B006824000NV
Not Available
15
Square
252420
$0,59 Unit Price incl. VAT
16
Self tapping screw
297498
$0,08 Unit Price incl. VAT
17
Spring
1B003658
$0,76 Unit Price incl. VAT
18
Door fixing bracket
257614
$1,09 Unit Price incl. VAT
19
Lockup hook door
675478
$5,38 Unit Price incl. VAT
20
Plate
675490
$5,38 Unit Price incl. VAT
21
Lever assembly
675489
$8,16 Unit Price incl. VAT
22
Special screw
299972
$0,50 Unit Price incl. VAT
23
Self locking nut
577620
$0,08 Unit Price incl. VAT
24
screw
CM179202
$0,25 Unit Price incl. VAT
25
Self tapping screw D4.2x13
CM178603
$0,16 Unit Price incl. VAT
26
Expansion plug
199190
$2,95 Unit Price incl. VAT
27
Relay bracket
CM022807
$5,38 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
