Rear luggage rack FOR Liberty 125 4T iGet Corporate Euro 5 FROM 2022

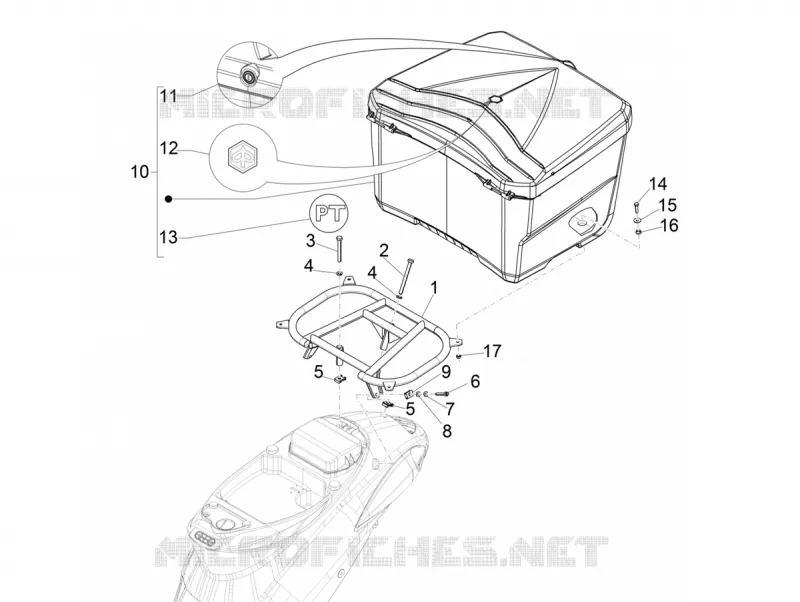

Rear luggage rack

1

Rear luggage rack

657245

$90,12 Unit Price incl. VAT

2

Vis M8x90

1B006357

$0,82 Unit Price incl. VAT

3

Vis M8x70

1B006356

$0,55 Unit Price incl. VAT

4

Spring washer 13,75x8,15x4,5

016408

$0,08 Unit Price incl. VAT

5

Spring plate M6

254485

$0,34 Unit Price incl. VAT

6

Vis Torx

1B006354

$0,77 Unit Price incl. VAT

7

Spring washer 16x8,2x2,2

834187

$0,16 Unit Price incl. VAT

8

Flat washer 15x8,4x1,5

003058

$0,08 Unit Price incl. VAT

9

Spring plate M8

575268

$1,19 Unit Price incl. VAT

10

Coffre complet

1B007179

$351,94 Unit Price incl. VAT

11

rear top box lock kit

497577

$41,50 Unit Price incl. VAT

12

Piaggio logo clip-on badge

2H002013

$8,01 Unit Price incl. VAT

13

PT label

576524

$3,31 Unit Price incl. VAT

14

screw M6x25

031092

$1,56 Unit Price incl. VAT

15

Washer

016673

$3,65 Unit Price incl. VAT

16

Spacer bush

624466

$8,01 Unit Price incl. VAT

17

Nut

709116

$0,59 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
