Cylinder-piston-wrist pin unit FOR Liberty 125 4T iGet Corporate Euro 5 FROM 2022

Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil

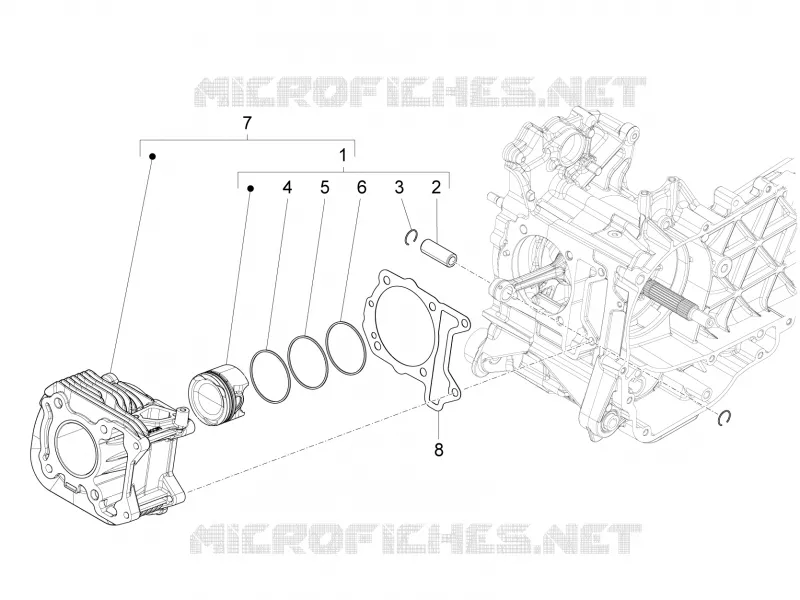

Cylinder-piston-wrist pin unit

1

C cat. complete piston

B0180110003

$66,39 Unit Price incl. VAT

1

D cat. complete piston

B0180110004

$76,49 Unit Price incl. VAT

1

A cat. complete piston

B0180110001

$102,02 Unit Price incl. VAT

1

B cat. complete piston

B0180110002

$68,61 Unit Price incl. VAT

2

Piston pin

1A008021R

$8,91 Unit Price incl. VAT

3

Circlip

B015602

$0,25 Unit Price incl. VAT

4

Compression ring 1° cava

B017544

$16,59 Unit Price incl. VAT

5

Compression ring 2° cava

B017545

$16,59 Unit Price incl. VAT

6

Oil scraper ring 3° cava

B017546

$25,10 Unit Price incl. VAT

7

Cyl.pist.-wrist pin assy unit

1A000771

$215,33 Unit Price incl. VAT

8

Cylinder base gasket 0,8 mm

875114

$4,62 Unit Price incl. VAT

8

Cylinder base gasket 0,6 mm

875113

$4,88 Unit Price incl. VAT

8

Cylinder base gasket 0,4 mm

875112

$4,04 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
