FLYWHEEL COVER - OIL FILTER FOR Liberty 125 4T iGet Corporate Euro 5 FROM 2022

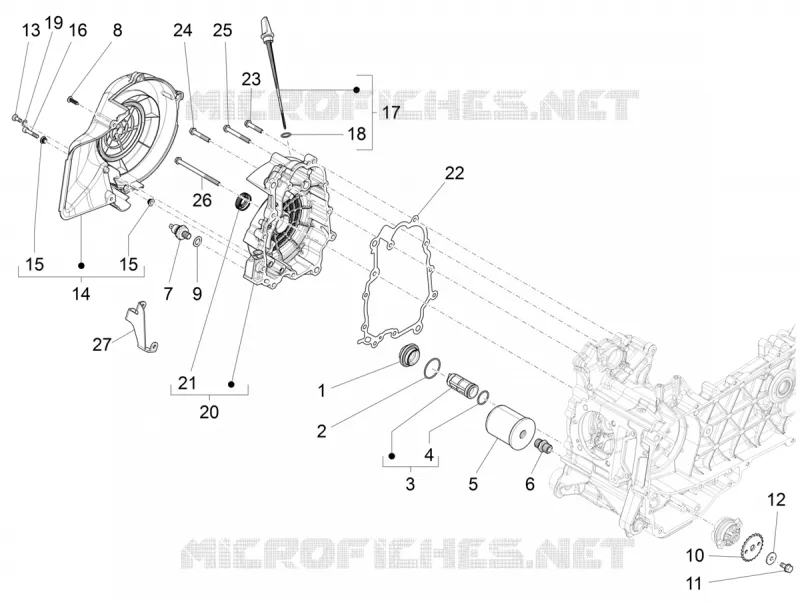

FLYWHEEL COVER - OIL FILTER

1

Oil filter plug

826165

$5,88 Unit Price incl. VAT

2

O-ring 31,47x1,78

285536

$0,92 Unit Price incl. VAT

3

Intake oil filter

B015454

$2,52 Unit Price incl. VAT

4

O-ring 20,35x1,78

288474

$0,08 Unit Price incl. VAT

5

Oil filter

82635R

$12,36 Unit Price incl. VAT

6

Special screw

B015455

$3,87 Unit Price incl. VAT

7

Minimum oil pressure sensor

1D001138

Not Available

8

Self tapping screw L=20 mm

267958

$0,25 Unit Price incl. VAT

9

Rondelle 10,5X17X1,5

1A011500

$0,59 Unit Price incl. VAT

10

Oil pump gear

287913

$6,47 Unit Price incl. VAT

11

Screw w/ flange M6x14

B016426

$0,42 Unit Price incl. VAT

12

Belleville spring Ã˜6,4xÃ˜20x2

436695

$0,59 Unit Price incl. VAT

13

Self-tapping screw M5x12

015585

$0,08 Unit Price incl. VAT

14

Convoyeur côté volant complet

1A019814

Not Available

15

Bushing

B015908

$1,18 Unit Price incl. VAT

16

Special cap screw

1A001680

$0,25 Unit Price incl. VAT

17

Oil dipstick

1A000621

$5,38 Unit Price incl. VAT

18

Joint

1A009397

$0,25 Unit Price incl. VAT

19

Plain washer 5,4x10x0,8

003055

$0,08 Unit Price incl. VAT

20

Complete flywheel cover

8798545

$158,88 Unit Price incl. VAT

21

Gasket ring 14x28x7

1A005835

$10,26 Unit Price incl. VAT

22

Flywheel housing cover gasket

877671

$4,12 Unit Price incl. VAT

23

Screw w/ flange M6x30

B016792

$0,25 Unit Price incl. VAT

24

screw M6x35

414838

$0,67 Unit Price incl. VAT

25

Screw w/ flange M6x50

B016775

$0,42 Unit Price incl. VAT

26

Screw w/ flange M6x90

B016776

$0,67 Unit Price incl. VAT

27

Support plate dispositivo elettrico

1B004951

$9,30 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
