1
Engine displacement
125
2
Model
GTS
3
Year
2018
4
Trim
GTS 125 4T Euro 4 ABS Super
5
Parts Catalog
Front shield
6
Parts Diagram
Parts Catalog
Handlebars - Master cil.
by
CENTRAL COVER - FOOTRESTS
Front shield
1
2
3
4
5
6
7
8
9
1
Cache colonne de direction peint
1B00668400090
$98,68 Unit Price incl. VAT
1
Cache colonne de direction peint
1B005760000R7
Not Available
1
Cache colonne de direction peint
1B005760000D03
Not Available
1
Cache colonne de direction peint
1B006684000D03
$98,68 Unit Price incl. VAT
1
Cache colonne de direction peint
1B006684000HQ
$98,68 Unit Price incl. VAT
1
Cache colonne de direction peint
1B006684000LD
$98,68 Unit Price incl. VAT
1
Steering cover
1B006684
Not Available
1
Cache colonne de direction peint
1B006684000R7
$98,68 Unit Price incl. VAT
1
Cache colonne de direction peint
1B006684000HT
$98,68 Unit Price incl. VAT
1
Cache colonne de direction peint
1B005760000HQ
Not Available
1
Cache colonne de direction peint
1B005760000BR
Not Available
1
Cache colonne de direction peint
1B006684000XN2
$98,68 Unit Price incl. VAT
1
Steering cover
1B005760
Not Available
1
Cache colonne de direction peint
1B005760000LD
Not Available
1
Cache colonne de direction peint
1B00576000090
Not Available
1
Cache colonne de direction peint
1B006684000NV
$98,68 Unit Price incl. VAT
2
Self-tapping screw
CM179101
$0,30 Unit Price incl. VAT
3
Expansion plug
199190
$2,95 Unit Price incl. VAT
4
Gripper clip
D9004468091
$0,34 Unit Price incl. VAT
5
Ornement supérieur
1B005775500R7
$8,51 Unit Price incl. VAT
5
Ornement supérieur
1B005775000NQ
$11,34 Unit Price incl. VAT
5
Ornement supérieur
1B005775000K1
$8,51 Unit Price incl. VAT
5
Ornement supérieur
1B00577500090
$8,98 Unit Price incl. VAT
6
Intermediate decoration
1B005776500R7
$14,18 Unit Price incl. VAT
6
Intermediate decoration
1B005776000K1
$11,34 Unit Price incl. VAT
6
Intermediate decoration
1B00577600090
$9,40 Unit Price incl. VAT
6
Intermediate decoration
1B005776000NQ
$11,34 Unit Price incl. VAT
7
Ornement inférieur
1B005777000NQ
$11,34 Unit Price incl. VAT
7
Ornement inférieur
1B00577700090
$10,45 Unit Price incl. VAT
7
Ornement inférieur
1B005777500R7
$15,69 Unit Price incl. VAT
7
Ornement inférieur
1B005777000K1
$11,34 Unit Price incl. VAT
8
Bord de tablier D
1B003380
$23,47 Unit Price incl. VAT
8
Bord de tablier D
1B006680
$64,55 Unit Price incl. VAT
9
Bord de tablier G
1B003379
$23,47 Unit Price incl. VAT
9
Bord de tablier G
1B006679
$64,55 Unit Price incl. VAT

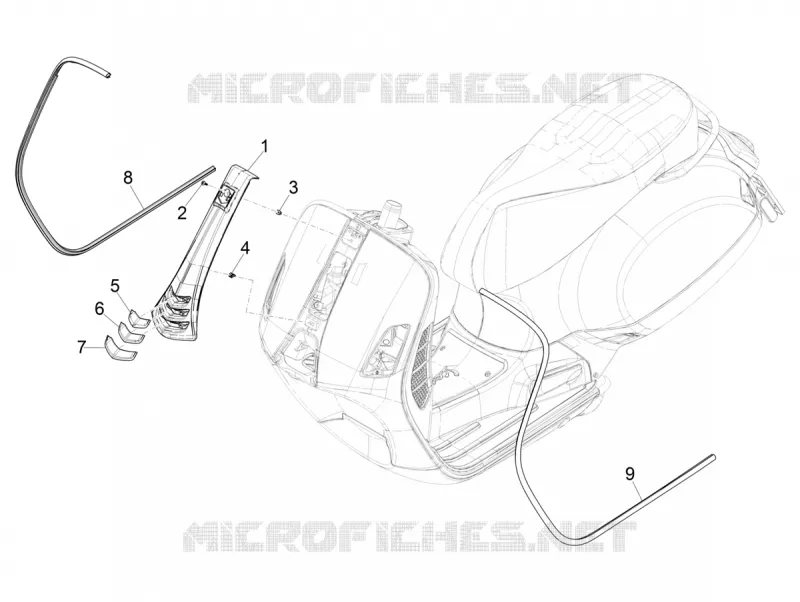

Find the detailed Front shield GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
