Engine displacement
125
2
Model
GTS
3
Year
2018
4
Trim
GTS 125 4T Euro 4 ABS Super
5
Parts Catalog
Cooling system
6
Parts Diagram
Parts Catalog
Helmet huosing - Undersaddle
by
Rear luggage rack
Cooling system
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
16
17
18
19
20
21
22
23
1
Expansion tank
1B003453
Not Available
2
Cover
1B003538
Not Available
3
Screw M6x16
CM179301
$0,25 Unit Price incl. VAT
4
Spring plate M6
254485
$0,34 Unit Price incl. VAT
5
Cooling tube L=280
CM278701
$1,48 Unit Price incl. VAT
6
Hose clamp
CM001901
$0,76 Unit Price incl. VAT
7
Water cooler
1A008047
Not Available
8
Air duct
1A007893
$8,70 Unit Price incl. VAT
9
Spring plate
1A003988
$1,81 Unit Price incl. VAT
10
Self tapping screw L=20 mm
267958
$0,25 Unit Price incl. VAT
11
Radiator cover
1A008528
Not Available
12
Screw w/ flange M6x16
1A006359
$2,20 Unit Price incl. VAT
13
Spacer
1A001859
$0,94 Unit Price incl. VAT
14
Flanged nut
874558
$0,09 Unit Price incl. VAT
15
Water cooler-head tube
1A006075
$4,98 Unit Price incl. VAT
16
Hose clamp
CM226910
$2,86 Unit Price incl. VAT
17
Water cooler-pump tube
1A006076
$8,10 Unit Price incl. VAT
18
Spring clamp 22/12
CM226903
$3,65 Unit Price incl. VAT
19
Hose clamp
CM226911
$3,28 Unit Price incl. VAT
20
Rod
1A006358
$1,86 Unit Price incl. VAT
21
Wiring clip
1D001143
$0,34 Unit Price incl. VAT
22
Breather pipe
CM001444
$4,87 Unit Price incl. VAT
23
Hose clamp 2,7x132
640879
$0,92 Unit Price incl. VAT
23
Wiring clip
1D001143
$0,34 Unit Price incl. VAT

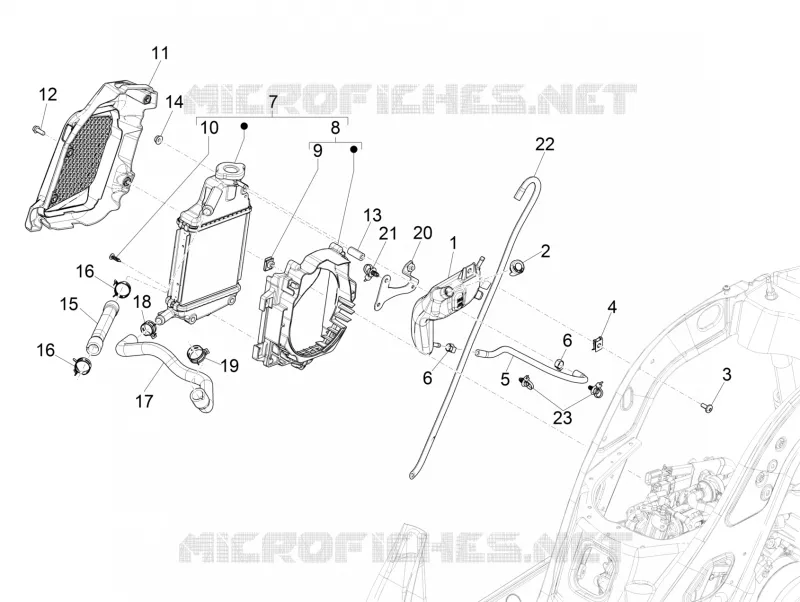

Find the detailed Cooling system GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
