Oil pump for GILERA PIAGGIO VESPA GTS 125 4T Euro 4 ABS Super from 2018

Fork/steering tube - Steering bearing unit

Oil pump

1

Oil pump assembly

1A004884

$17,96 Unit Price incl. VAT

2

Oil pump/crankcase gasket

B015460

$0,50 Unit Price incl. VAT

3

Screw w/ flange M5x35

829593

$0,50 Unit Price incl. VAT

4

Oil pump gear

287913

$6,47 Unit Price incl. VAT

5

Screw w/ flange M6x14

B016426

$0,42 Unit Price incl. VAT

6

Belleville spring

B015991

$0,34 Unit Price incl. VAT

7

Oil pump chain

B015459

$4,54 Unit Price incl. VAT

8

Oil pump control pinion

82783R

$7,99 Unit Price incl. VAT

9

O-Ring seal ring

B015451

$0,50 Unit Price incl. VAT

10

Oil seal washer

B015450

$3,65 Unit Price incl. VAT

11

Timing chain pinion

82782R

$7,06 Unit Price incl. VAT

12

Chain tensioner rod

1A006293

$13,53 Unit Price incl. VAT

13

Screw w/ flange M6x25

1A000350

$2,25 Unit Price incl. VAT

14

Chain tensioner rod spacer

B015445

$0,76 Unit Price incl. VAT

15

Chaîne de distribution

1A006278

$14,23 Unit Price incl. VAT

16

Chain tensioner sliding block

1A006294

$8,31 Unit Price incl. VAT

17

Timing system cover

1A0033175

$40,10 Unit Price incl. VAT

18

Oil pump chain drift

434345

$2,77 Unit Price incl. VAT

19

O-Ring seal ring

B015449

$4,96 Unit Price incl. VAT

20

Gasket ring 24.35.7

1A005743

$10,42 Unit Price incl. VAT

21

Hex socket screw M5x14

B016455

$0,34 Unit Price incl. VAT

22

Plain washer

487937

$0,09 Unit Price incl. VAT

23

Pan oil

B013437

$22,19 Unit Price incl. VAT

24

Screw w/ flange M6x30

B016792

$0,25 Unit Price incl. VAT

25

Sump gasket

B014152

$2,02 Unit Price incl. VAT

26

Locating dowel Ã˜7,5x12

277916

$0,34 Unit Price incl. VAT

27

Chain tensioner bracket

847277

Not Available

28

Cylinder/chain tensioner gasket

B015444

$4,82 Unit Price incl. VAT

28

Joint de tendeur de chaîne/cylindre

1A015954

$1,17 Unit Price incl. VAT

29

Screw w/ flange M6x16

B016777

$0,16 Unit Price incl. VAT

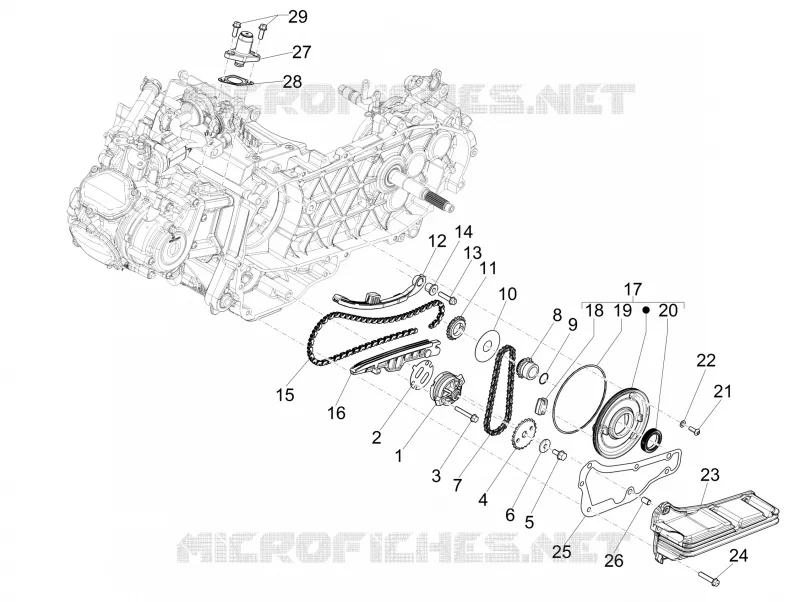

Find the detailed Oil pump GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
