Parts Catalog
Brakes pipes - Calipers (ABS)
6
Parts Diagram
Parts Catalog
Crankshaft
by
Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
Brakes pipes - Calipers (ABS)
1
2
3
4
4
5
5
5
5
6
6
7
8
9
10
11
12
13
14
15
15
15
15
15
16
16
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
1
ABS electro-hydraulic control unit
1C001631
$1 736,10 Unit Price incl. VAT
2
Support clamp ABS
1C000266
$17,07 Unit Price incl. VAT
3
Hex screw M6x20
018639
$0,16 Unit Price incl. VAT
4
Hex screw M6x20
018639
$0,16 Unit Price incl. VAT
5
Spacer
1C000253
$0,34 Unit Price incl. VAT
6
Pad
939278
$0,34 Unit Price incl. VAT
7
Fixture rod
1C000171
$17,07 Unit Price incl. VAT
8
Nut
969224
$0,42 Unit Price incl. VAT
9
Complete bracket
1C002660
Not Available
10
Front brake caliper
CM068320
$132,30 Unit Price incl. VAT
11
Brake pads couple
668021
$105,58 Unit Price incl. VAT
12
Brake supp. plate pin
666139
$7,56 Unit Price incl. VAT
13
Hex socket screw M8x40
149104
$0,51 Unit Price incl. VAT
14
Spring washer
709047
$0,08 Unit Price incl. VAT
15
Gasket
127927
$0,25 Unit Price incl. VAT
16
Special screw
1C002059R
$2,02 Unit Price incl. VAT
17
Pinza freno Heng Tong
CM074101
$86,40 Unit Price incl. VAT
18
Rear Brake pads couple.
647161
$36,45 Unit Price incl. VAT
19
screw
319532
$3,65 Unit Price incl. VAT
20
Spring washer
709047
$0,08 Unit Price incl. VAT
21
Flat washer 15x8,4x1,5
003058
$0,08 Unit Price incl. VAT
22
ABS unit right brake pump pipe
1C000271
$68,89 Unit Price incl. VAT
23
LH brake pump - ABS unit pipe
1C000270
$68,89 Unit Price incl. VAT
24
ABS unit brake pipe - front brake pin
1C002321
$67,34 Unit Price incl. VAT
25
Rear brake - junction - ABS unit pip
1C000630
$72,01 Unit Price incl. VAT
26
Rear brake pipe
1C002323
Not Available
27
Screw w/ flange M6x16
B016777
$0,16 Unit Price incl. VAT
28
Screw w/ flange M6x16
B016777
$0,16 Unit Price incl. VAT
29
Flat washer 8,2x17x2,5
828961
$0,28 Unit Price incl. VAT
30
Bracket with up
649635
$6,30 Unit Price incl. VAT
31
Screw M6x16
272836
$3,70 Unit Price incl. VAT
32
Non return spring L=23
CM006908
$0,50 Unit Price incl. VAT
33
Hose clamp
217280
Not Available
34
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT

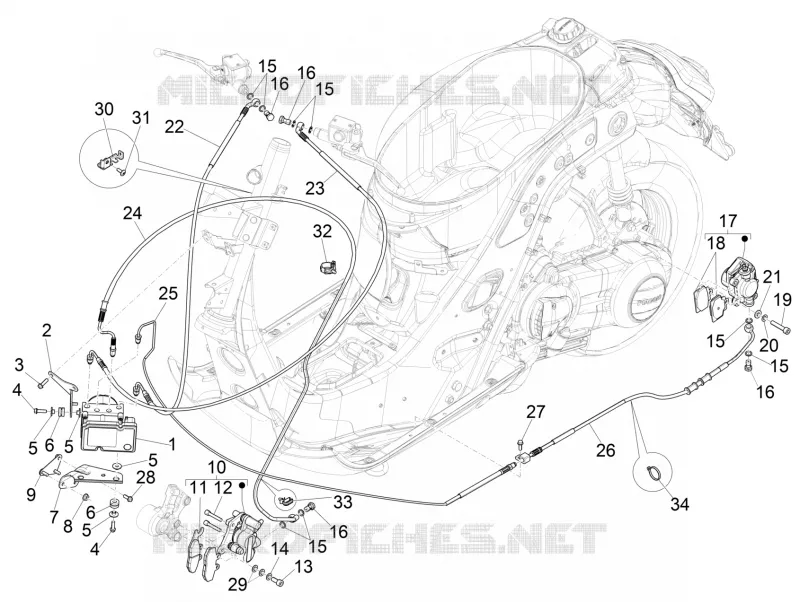

Find the detailed Brakes pipes - Calipers (ABS) GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
