1
Engine displacement
300
2
Model
GTS
3
Year
2017
4
Trim
GTS 300 ie ABS E4
5
Parts Catalog
Air filter
6
Parts Diagram
Parts Catalog
Cylinder-piston-wrist pin unit
by
Stand/s
Air filter
19
18
17
16
15
14
13
12
11
10
10
9
8
7
6
5
4
3
2
1
1
Air.cl.case
1A008207
$99,91 Unit Price incl. VAT
2
Hose clamp
260918
$1,68 Unit Price incl. VAT
3
Air cleaner sleeve / throttle body
1A007660
$25,82 Unit Price incl. VAT
4
Air filter
831997
Not Available
5
Packing
831995
$5,38 Unit Price incl. VAT
6
Self-tap screw M3x20
258146
$0,25 Unit Price incl. VAT
7
Special cap screw M6x55
1B000678
$0,51 Unit Price incl. VAT
8
Notched washer 6,6x11x0
012533
$0,67 Unit Price incl. VAT
9
Flat washer 6,4x12x1
003056
$0,08 Unit Price incl. VAT
10
Knurled bushing
830056
$0,34 Unit Price incl. VAT
11
Spring plate M6
254485
$0,34 Unit Price incl. VAT
12
Air filter closing knob
479132
$10,92 Unit Price incl. VAT
13
Cap
827831
$2,60 Unit Price incl. VAT
14
Hose clamp
CM002910
$0,59 Unit Price incl. VAT
15
screw
259166
Not Available
16
Notched washer 6,6x11x0
012533
$0,67 Unit Price incl. VAT
17
Flat washer 6,4x12x1
003056
$0,08 Unit Price incl. VAT
18
Bushing
830057
$1,01 Unit Price incl. VAT
19
Self locking nut M6
288245
$0,16 Unit Price incl. VAT

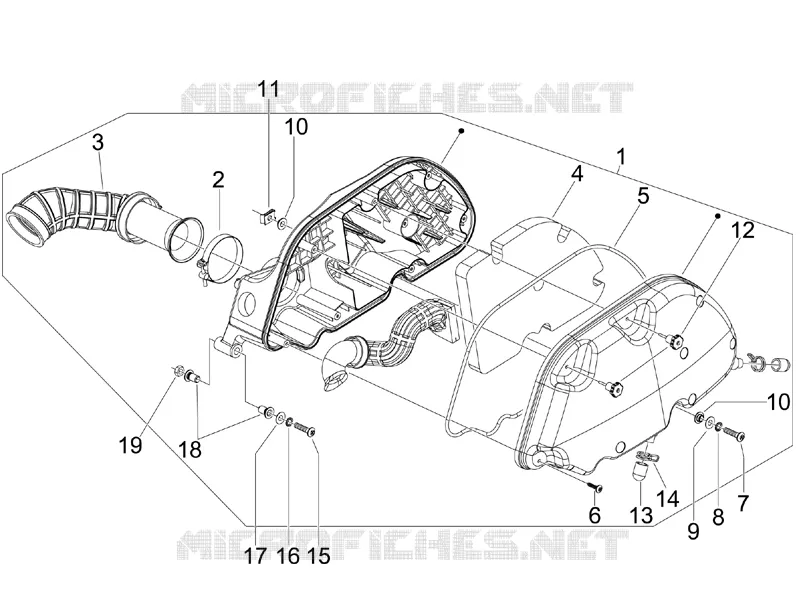

Find the detailed Air filter GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
