1
Engine displacement
300
2
Model
GTS
3
Year
2017
4
Trim
GTS 300 ie ABS E4
5
Parts Catalog

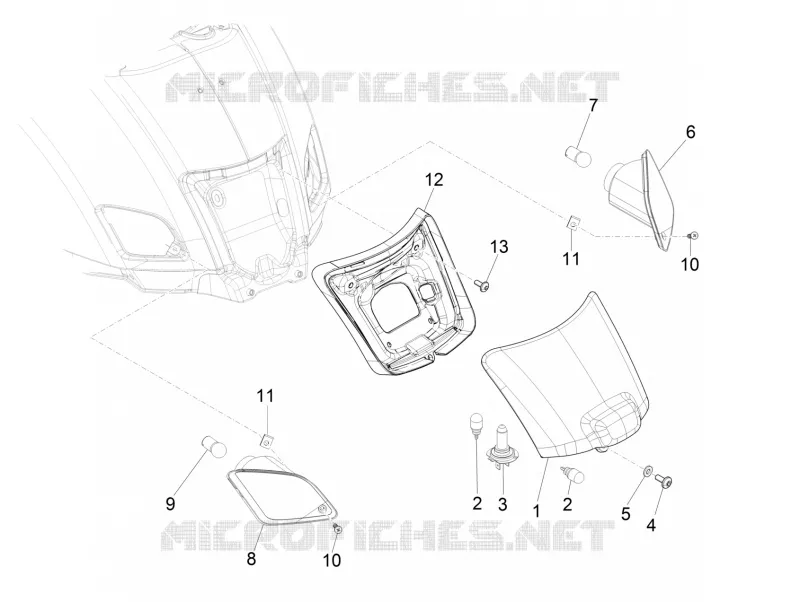

Rear headlamps - Turn signal lamps
6
Parts Diagram
Parts Catalog
Front glove-box - Knee-guard panel
by
Cooling system
Rear headlamps - Turn signal lamps
1
2
2
3
4
5
6
7
8
9
10
10
11
11
12
13
1
Taillight with reflector
1D000570
$55,57 Unit Price incl. VAT
2
12V-5W bulb
2920225
$1,10 Unit Price incl. VAT
3
Lamp 12V-16W
638536
$2,22 Unit Price incl. VAT
4
screw M6x25
CM179305
$0,25 Unit Price incl. VAT
5
Spring washer 12x6,4x0,5
006976
$0,08 Unit Price incl. VAT
6
Right rear turn indicator
1D000477
Not Available
7
Halogen Lamp 12V-6W
1D000261
$21,87 Unit Price incl. VAT
8
Left rear turn indicator
1D000478
Not Available
9
Halogen Lamp 12V-6W
1D000261
$21,87 Unit Price incl. VAT
10
Self-tap screw M4,2x19
008457
$2,99 Unit Price incl. VAT
11
Plate
CM017406
$3,65 Unit Price incl. VAT
12
Light frame
1B000959
$39,97 Unit Price incl. VAT
13
Screw M6x16
CM179301
$0,25 Unit Price incl. VAT

Find the detailed Rear headlamps - Turn signal lamps GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
