Cooling system
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
28
29
30
31
31
1
Tank
577401
Not Available
1
Coolant tank
623674
Not Available
1
Coolant tank
621827
Not Available
2
Tank cap
573454
Not Available
2
Expansion tank plug
623673
$15,97 Unit Price incl. VAT
3
Radiator-head pipe fitting link
620021
Not Available
3
Radiator-head pipe fitting link
57317R
Not Available
4
Hose clamp
CM001903
$0,84 Unit Price incl. VAT
5
pipe
620046
Not Available
5
Upper connection joint pipe
57333R
$56,11 Unit Price incl. VAT
6
Joint
577195
$8,16 Unit Price incl. VAT
7
pipe
577205
Not Available
8
Lower joint-left radiator connection pipe
57313R
$26,74 Unit Price incl. VAT
8
Lower joint-left radiator connection pipe
577202
Not Available
9
Lower joint-right radiator connection pipe
577201
$26,74 Unit Price incl. VAT
10
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
11
Spring plate M6
254485
$0,34 Unit Price incl. VAT
12
Thermal switch
294152
Not Available
12
Thermal switch
584676
$25,98 Unit Price incl. VAT
13
TBCIC Screw
270793
$0,08 Unit Price incl. VAT
14
Self locking nut M6
288245
$0,16 Unit Price incl. VAT
15
pipe
577384
$8,91 Unit Price incl. VAT
16
pipe
623013
$5,38 Unit Price incl. VAT
16
pipe
577385
Not Available
17
pipe
577433
$5,38 Unit Price incl. VAT
18
pipe
57314R
$7,23 Unit Price incl. VAT
18
pipe
577436
Not Available
19
Joint
577196
Not Available
20
Copper gasket
168077
$3,65 Unit Price incl. VAT
21
Screw M6x16
272836
$3,70 Unit Price incl. VAT
22
Fan engine
577431
Not Available
22
Fan engine
584669
$76,39 Unit Price incl. VAT
23
Air deflector
577184
$15,22 Unit Price incl. VAT
23
Left air duct
577187
$15,22 Unit Price incl. VAT
24
Hose clamp
CM001904
$0,75 Unit Price incl. VAT
25
Hose clamp
CM001905
$1,38 Unit Price incl. VAT
26
Hose clamp
CM001907
$0,84 Unit Price incl. VAT
27
Hose clamp
CM001908
$3,65 Unit Price incl. VAT
28
Hose clamp
CM001915
$1,03 Unit Price incl. VAT
29
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
30
Pipes/cables retainer spring
CM006903
$1,43 Unit Price incl. VAT
31
Water cooler
577183
$50,73 Unit Price incl. VAT

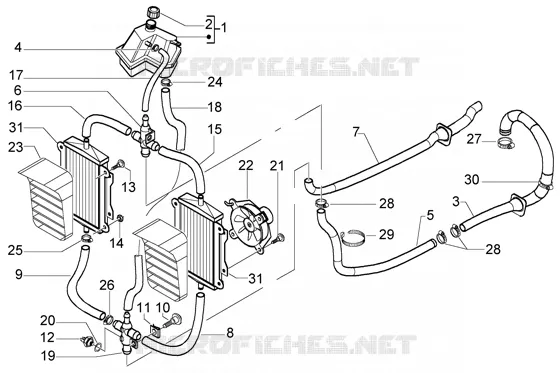

Find the detailed Cooling system GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
