1
Engine displacement
125
2
Model
GRANTURISMO
3
Year
2004
4
Trim
Granturismo L
5
Parts Catalog
Bodywork
6

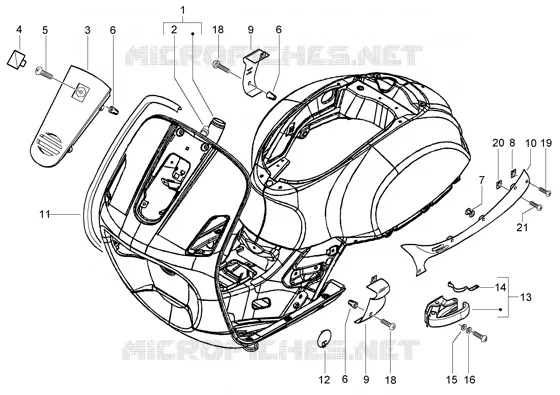

Parts Diagram
Parts Catalog
Oil filter
by
Front wheel
Bodywork
1
2
3
3
4
5
6
6
7
8
9
9
10
11
12
13
14
15
16
18
18
19
20
21
1
Frame
57715400A7
Not Available
1
Frame
57715400BG
Not Available
1
Frame
57715400EB
Not Available
1
Frame with u.p.
62291450D9
Not Available
1
Frame
5771540090
Not Available
1
Body with U.P.
62291450BM
Not Available
1
Frame
57715400VC
Not Available
1
Body with U.P.
62291450F2
Not Available
1
Frame
57715400F2
Not Available
1
Frame
57715400D8
Not Available
1
Body with U.P.
62291450ND
Not Available
1
Frame
5771540018
Not Available
1
Frame
57715400D9
Not Available
2
Lock support
298604
$16,40 Unit Price incl. VAT
3
Steering column cover
57742700BG
Not Available
3
Steering column cover
57742750BM
$98,68 Unit Price incl. VAT
3
Steering column cover
5774270090
Not Available
3
Steering column cover
57742750D9
$98,68 Unit Price incl. VAT
3
Steering column cover
57742700A7
Not Available
3
Steering column cover
57742700D9
Not Available
3
Steering column cover
57742700EB
Not Available
3
Steering column cover
57742750ND
$98,68 Unit Price incl. VAT
3
Steering column cover
5774270018
Not Available
3
Steering column cover
57742750F2
$98,68 Unit Price incl. VAT
3
Steering column cover
57742700VC
Not Available
3
Steering column cover
57742700F2
Not Available
3
Steering column cover
57742700D8
Not Available
4
Shield "Piaggio"
576464
$8,51 Unit Price incl. VAT
5
Self tapping screw L=20 mm
267958
$0,25 Unit Price incl. VAT
6
Expansion plug
199190
$2,95 Unit Price incl. VAT
7
Elastic drift
463195
Not Available
8
Spring plate
CM017410
$0,34 Unit Price incl. VAT
9
Terminal
5774740018
Not Available
9
Terminal
57747300D8
Not Available
9
Spoiler right terminal
57747400BM
$56,87 Unit Price incl. VAT
9
Terminal
57747400D8
Not Available
9
Terminal
57747400BG
Not Available
9
Spoiler right terminal
57747400F2
Not Available
9
Spoiler right terminal
57747400D9
Not Available
9
Spoiler right terminal
57747400ND
Not Available
9
Spoiler left terminal
57747300D9
Not Available
9
Spoiler right terminal
57747400VC
$56,87 Unit Price incl. VAT
9
Spoiler right terminal
57747400EB
$56,87 Unit Price incl. VAT
9
Spoiler left terminal
5774730090
$56,87 Unit Price incl. VAT
9
Terminal
57747400A7
Not Available
9
Terminal
5774730018
Not Available
9
Spoiler left terminal
57747300F2
$56,87 Unit Price incl. VAT
9
Spoiler left terminal
57747300ND
$56,87 Unit Price incl. VAT
9
Spoiler left terminal
57747300BM
$56,87 Unit Price incl. VAT
9
Terminal
57747300BG
$56,87 Unit Price incl. VAT
9
Spoiler left terminal
57747300VC
$56,87 Unit Price incl. VAT
9
Spoiler right terminal
5774740090
Not Available
9
Spoiler left terminal
57747300EB
$56,87 Unit Price incl. VAT
9
Terminal
57747300A7
Not Available
10
Left lateral protection
57739300BM
Not Available
10
Left lateral protection
57739300VC
$114,66 Unit Price incl. VAT
10
Left lateral protection
57739300D9
$114,66 Unit Price incl. VAT
10
Right lateral protection
57739400VC
Not Available
10
Right lateral protection
57739400EB
$114,66 Unit Price incl. VAT
10
Left lateral protection
57739300ND
Not Available
10
Guard
57739400D8
Not Available
10
Guard
57739400BG
Not Available
10
Guard
57739400A7
Not Available
10
Guard
5773940090
Not Available
10
Right lateral protection
57739400D9
$114,66 Unit Price incl. VAT
10
Guard
5773940018
Not Available
10
Left lateral protection
57739300EB
Not Available
10
Guard
57739300BG
Not Available
10
Right lateral protection
57739400ND
Not Available
10
Right lateral protection
57739400F2
$114,66 Unit Price incl. VAT
10
Guard
57739300D8
Not Available
10
Guard
5773930018
Not Available
10
Right lateral protection
57739400BM
$114,66 Unit Price incl. VAT
10
Guard
57739300A7
Not Available
10
Left lateral protection
57739300F2
Not Available
10
Guard
5773930090
Not Available
11
Right-hand shield edge
577181
$56,70 Unit Price incl. VAT
11
Left-hand shield edge
577180
$56,70 Unit Price incl. VAT
12
Cover
5774050043
$10,76 Unit Price incl. VAT
12
Spoiler cover
577405000C
$10,76 Unit Price incl. VAT
13
Footrest r.h.
57327R
$102,60 Unit Price incl. VAT
13
Footrest l.h.
57326R
$102,60 Unit Price incl. VAT
13
Complete right footrest
CM017202
Not Available
13
Complete left footrest
CM017201
Not Available
14
Spring
620395
$5,53 Unit Price incl. VAT
15
Spring washer 16x8,2x2,2
834187
$0,16 Unit Price incl. VAT
16
Spring washer 13,75x8,15x4,5
016408
$0,08 Unit Price incl. VAT
17
Cover
299557
$0,76 Unit Price incl. VAT
18
Self-tap screw
576189
$0,05 Unit Price incl. VAT
19
Metric screw M6x20
259830
$0,09 Unit Price incl. VAT
20
Spring plate
184142
Not Available
20
Spring plate
CM017410
$0,34 Unit Price incl. VAT
21
Self tapping screw M4x16
267115
$2,99 Unit Price incl. VAT
21
Self tapping screw 4,2x25*
014754
$2,95 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
