by

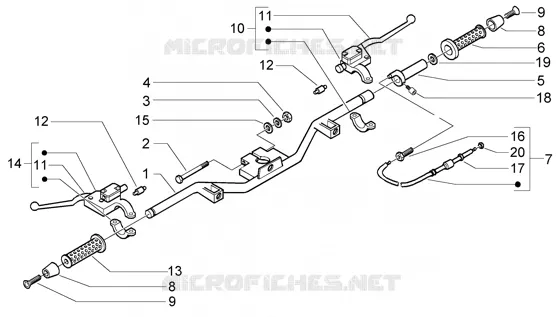

Handlebars
1
2
3
4
5
6
7
8
8
9
9
10
11
11
12
12
13
14
15
16
17
18
19
20
1
Handlebar
583407
$60,75 Unit Price incl. VAT
2
screw
223605
Not Available
3
Flat washer
178790
$0,51 Unit Price incl. VAT
4
Nut M10
015330
$0,25 Unit Price incl. VAT
5
Hose
CM060950
$122,85 Unit Price incl. VAT
5
Hose
CM060933
Not Available
6
Grip, r.h.
271453
$13,37 Unit Price incl. VAT
7
Transmission
CM073301
$48,60 Unit Price incl. VAT
8
Anti vib.weight trailing
582034
$14,89 Unit Price incl. VAT
9
screw M6x55
271434
Not Available
10
Master cil. (alluminium lever)
CM064301
Not Available
10
Front brakes pump assembly (Heng Tong)
CM074901
$125,55 Unit Price incl. VAT
11
Brake lever
497042
$18,36 Unit Price incl. VAT
11
Brake lever
646833
Not Available
12
stop Button
584480
Not Available
12
stop Button
583575
$3,26 Unit Price incl. VAT
13
Grip, l.h.
271452
$13,37 Unit Price incl. VAT
14
Brakes pump
CM064404
Not Available
14
Rear master cylinder Heng Tong
CM074801
$180,90 Unit Price incl. VAT
15
Flat elastic washer with internal toothing 17x10,3x2
012543
$0,08 Unit Price incl. VAT
16
Adjuster screw
269145
$1,30 Unit Price incl. VAT
17
Nut
020105
$0,25 Unit Price incl. VAT
18
Screw with bushing
123394
$3,70 Unit Price incl. VAT
19
Ring 38,3x27x1,2
562923
$2,99 Unit Price incl. VAT
20
Nut
002613
$2,25 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
