1
Engine displacement
500
2
Model
NEXUS
3
Year
2003
4
Trim
Nexus 500
5
Parts Catalog
Central Stand
6

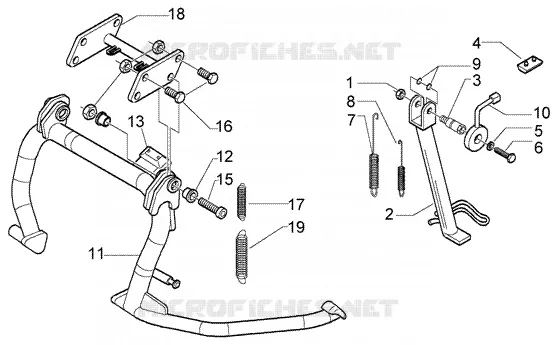

Parts Diagram
Parts Catalog
Chasis
by
Engine
Central Stand
1
2
3
4
5
6
7
8
9
10
11
12
13
15
16
17
18
19
1
Self locking nut M10
232108
Not Available
2
Lateral stand
975717
$16,11 Unit Price incl. VAT
3
Sec. screw
583155
$5,90 Unit Price incl. VAT
4
Stop buffer
582885
$5,53 Unit Price incl. VAT
5
Flat washer 16x6,5x1,5
013880
$0,08 Unit Price incl. VAT
6
screw M6x16
031088
$0,17 Unit Price incl. VAT
7
Spring
295789
$4,82 Unit Price incl. VAT
8
Spring
295788
$4,82 Unit Price incl. VAT
9
Gasket
191189
$0,17 Unit Price incl. VAT
10
Switch
582633
$58,05 Unit Price incl. VAT
11
Central stand
975821
Not Available
12
Bushing
582756
Not Available
13
Stand end stop
600351
$5,53 Unit Price incl. VAT
13
Pad
563984
$5,62 Unit Price incl. VAT
14
Self locking nut M10
232108
Not Available
15
screw
583480
$0,84 Unit Price incl. VAT
16
Bolt
031153
$3,65 Unit Price incl. VAT
17
Spring
583162
$12,62 Unit Price incl. VAT
18
plate
9757555
Not Available
19
Spring
583161
$6,38 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
