1
Engine displacement
500
2
Model
NEXUS
3
Year
2003
4
Trim
Nexus 500
5
Parts Catalog

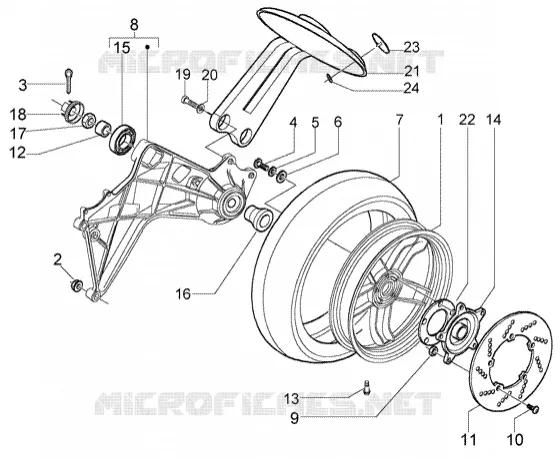

Rear Wheel
6
Parts Diagram
Parts Catalog
Front Wheel
by
Cylinder-Piston-Wrist Pin, Assy
Rear Wheel
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
Wheel
598022
Not Available
2
Nut M10x1,25 6H
833520
$0,42 Unit Price incl. VAT
3
Split pin
012789
$0,16 Unit Price incl. VAT
4
screw M8x40
825758
$0,33 Unit Price incl. VAT
5
Spring washer
709047
$0,08 Unit Price incl. VAT
6
Washer
246976
$1,84 Unit Price incl. VAT
7
Rear tyre 160/60-R14
975564
Not Available
8
Suspension arm
975112
Not Available
9
Self locking nut
597565
$0,50 Unit Price incl. VAT
10
screw
597564
$0,50 Unit Price incl. VAT
11
Brake disc
597520
Not Available
12
Spacer
597528
$1,51 Unit Price incl. VAT
13
Tubeless valve
597679
$3,03 Unit Price incl. VAT
14
Rear wheel hub
56110R
Not Available
15
Radial bearing 17x47x14
826974
Not Available
15
Ball bearing
82545R
$12,11 Unit Price incl. VAT
16
Spacer
597390
Not Available
17
Nut M16x13
563728
$1,42 Unit Price incl. VAT
18
Nut hold cap
194423
$0,48 Unit Price incl. VAT
19
screw
812592
Not Available
20
Spring washer 6,4x11x0,5
006966
$0,08 Unit Price incl. VAT
21
Splash guard
975690000G
Not Available
22
Spacer
975727
$2,81 Unit Price incl. VAT
23
Reflector
582922
$4,82 Unit Price incl. VAT
24
Plate
259539
$0,11 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
