1
Engine displacement
500
2
Model
NEXUS
3
Year
2003
4
Trim
Nexus 500
5
Parts Catalog

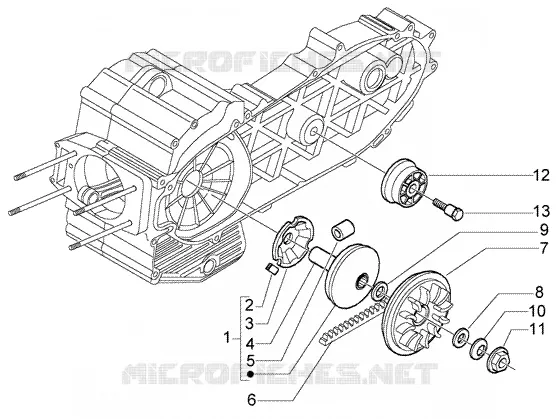

Driving Pulley
6
Parts Diagram
Parts Catalog
Cylinder Head Cover
by
Driven Pulley
Driving Pulley
1
2
3
4
5
6
7
8
9
10
11
12
13
1
Container for 6 rollers
832832
Not Available
2
White shoe
833293
$3,78 Unit Price incl. VAT
3
Roller contrast
829344
Not Available
4
Spacer
825381
$29,76 Unit Price incl. VAT
5
6 rollers kit
8312655
$31,05 Unit Price incl. VAT
6
V-belt
832738
$120,15 Unit Price incl. VAT
7
Fixed driving half pulley
832697
$41,85 Unit Price incl. VAT
8
Plain washer 18.1x42x3
829205
$5,20 Unit Price incl. VAT
9
Flat washer 22.1x36x2
829203
$3,65 Unit Price incl. VAT
10
Belleville spring
829251
$3,65 Unit Price incl. VAT
11
Nut M18x1,5
829232
$2,31 Unit Price incl. VAT
12
Damping pulley
834304
$76,39 Unit Price incl. VAT
13
Special screw M8x25
829693
$5,20 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
