Crankcase for GILERA PIAGGIO VESPA MP3 500 Sport ABS E4 from 2018

Crankcase

1

Carter complet 3e cat.

CM1566050C

Not Available

1

Carter complet 4e cat.

CM1566050D

Not Available

1

Carter complet 1e cat.

CM1566050A

Not Available

1

Carter complet 2e cat.

CM1566050B

Not Available

2

Pin d.9,5 h=15

B015956

$0,75 Unit Price incl. VAT

3

Pin 11,8X10

825597

$0,94 Unit Price incl. VAT

4

Stud bolt

1A003631R

$6,60 Unit Price incl. VAT

5

Pin d.9,5 h=15

B015956

$0,75 Unit Price incl. VAT

6

Bearing 20x42x1

82656R

$8,51 Unit Price incl. VAT

7

Locating dowel

484993

$0,16 Unit Price incl. VAT

8

Nozzle

825649

$1,11 Unit Price incl. VAT

9

Stud bolt M10X1,25X51

1A003080

$3,65 Unit Price incl. VAT

10

Bearing D20x52x15

82660R

$21,87 Unit Price incl. VAT

11

Snap ring

006652

$0,76 Unit Price incl. VAT

12

Gasket ring 35x47x7

873932

$8,70 Unit Price incl. VAT

13

Stud bolt

848893

$3,65 Unit Price incl. VAT

14

Locating dowel

B015957

$0,59 Unit Price incl. VAT

15

Bearing 52x25x15

825233

$10,67 Unit Price incl. VAT

16

Circlip 25x26,9x1,2

B015959

$0,34 Unit Price incl. VAT

17

Radial ball bearing 20x47x14

833701

Not Available

18

Radial ball bearing 15x42x13

83018R

$4,46 Unit Price incl. VAT

19

Gasket ring 40x25x7

873931

$11,11 Unit Price incl. VAT

20

Nozzle

484034

$6,44 Unit Price incl. VAT

21

Half crankcase gasket

872909

$18,86 Unit Price incl. VAT

22

Screw w/ flange M6x65

B016762

$0,51 Unit Price incl. VAT

23

Complete oil level dipstick

832130

$2,94 Unit Price incl. VAT

24

Gasket ring 14,43x9,19x2,62

827085

$2,99 Unit Price incl. VAT

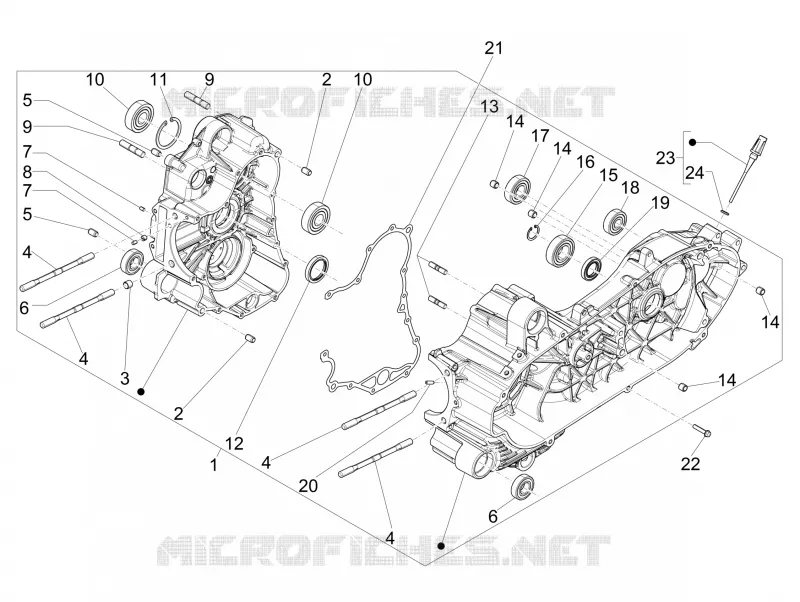

Find the detailed Crankcase GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
