TAIL LIGHTS - INDICATORS for GILERA PIAGGIO VESPA MP3 500 Sport ABS E4 from 2018

TAIL LIGHTS - INDICATORS

1

Lh rear light

2D000060

$203,27 Unit Price incl. VAT

2

Spring plate

181351

$0,17 Unit Price incl. VAT

3

Plate light support

2B000733

$20,60 Unit Price incl. VAT

4

Rear licence plate light

D8127087Z01

$13,37 Unit Price incl. VAT

5

Rh rear light

2D000059

$203,27 Unit Price incl. VAT

6

Plate light support

2B000734

$28,44 Unit Price incl. VAT

7

Self tapping screw D4.2x16

CM178601

$0,16 Unit Price incl. VAT

8

Expansion plug

199190

$2,95 Unit Price incl. VAT

9

Spring plate

CM017410

$0,34 Unit Price incl. VAT

10

Self tapping screw D4.2x16

CM178601

$0,16 Unit Price incl. VAT

11

Reflector

638745

$7,02 Unit Price incl. VAT

12

Washer

709037

$2,25 Unit Price incl. VAT

13

Washer

016346

$2,76 Unit Price incl. VAT

14

Front left/Rear right turn sig. lamp

1D002422

$49,10 Unit Price incl. VAT

15

Front right / Rear left turn sig. lamp

1D002423

$50,88 Unit Price incl. VAT

16

Screw M6x16

CM179301

$0,25 Unit Price incl. VAT

17

Spring plate

CM017410

$0,34 Unit Price incl. VAT

18

Spring plate M6

254485

$0,34 Unit Price incl. VAT

19

Self tapping screw D4x16

CM180701

$0,16 Unit Price incl. VAT

20

Right turn indicator support

2B000732

$15,22 Unit Price incl. VAT

21

Left turn indicator support

2B000758

$15,22 Unit Price incl. VAT

22

Nut M12x1.5x30

2B000974

$4,36 Unit Price incl. VAT

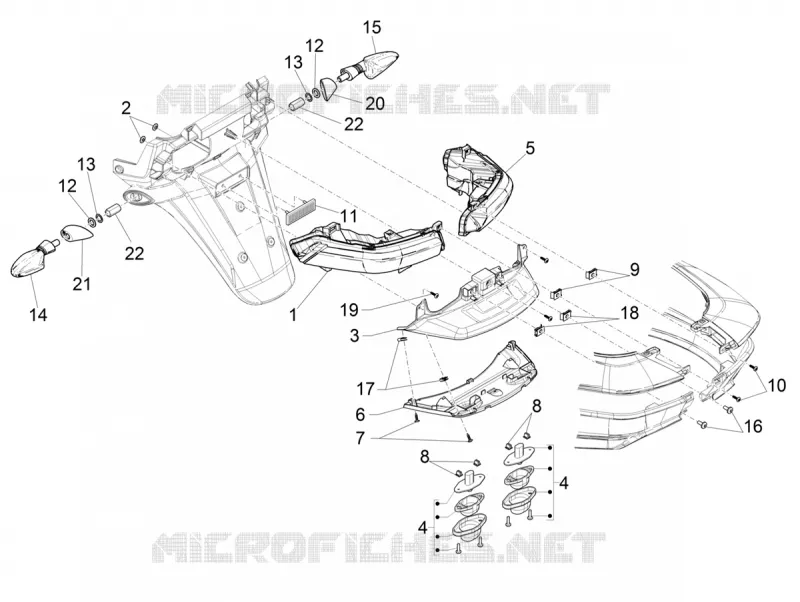

Find the detailed TAIL LIGHTS - INDICATORS GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
