Engine displacement
500
2
Model
MP3
3
Year
2018
4
Trim
MP3 500 Sport ABS E4
5
Parts Catalog
Front wheel
6

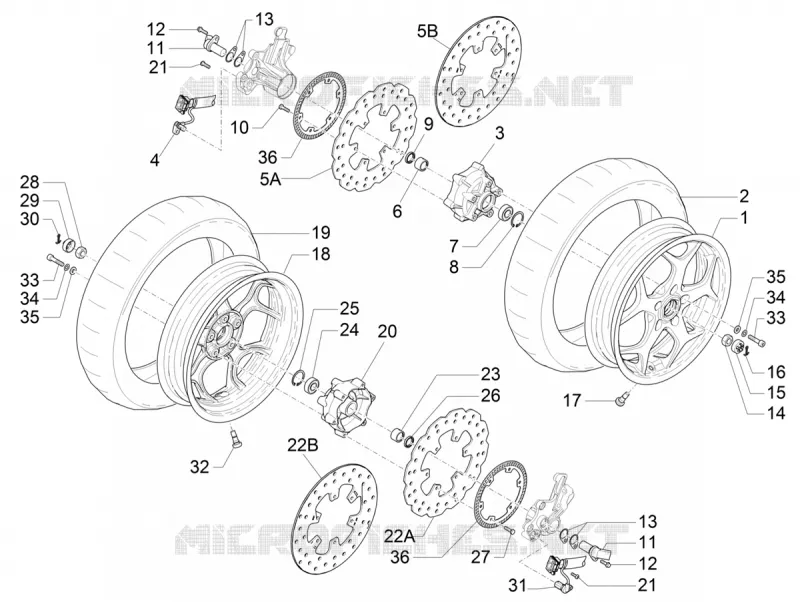

Parts Diagram
Parts Catalog
CRANKSHAFT
by
Crankcase
Front wheel
1
1
2
2
3
4
6
5A
5B
7
8
9
10
11
11
12
12
13
13
14
15
16
17
18
18
19
19
20
21
21
22A
22B
23
24
25
26
27
28
29
30
31
32
33
33
34
34
35
35
36
36
1
3.00x13"
1C002667
$298,35 Unit Price incl. VAT
1
Roue avant 3.00 x 13"
1C003635
$186,99 Unit Price incl. VAT
2
(Michelin) Tyre 110/70-13"
2B000757
Not Available
2
Pneu AV 110/70-13"
1C004380
$149,95 Unit Price incl. VAT
3
Rear wheel hub with U.P.
650907
$46,15 Unit Price incl. VAT
4
Fixed sensor cable assembly
2D000066
$127,66 Unit Price incl. VAT
5A
Brake disc
1C003375
$60,66 Unit Price incl. VAT
5B
Brake disc D 258
1C000681
$233,55 Unit Price incl. VAT
6
Roller cage
177442
$4,04 Unit Price incl. VAT
7
Bearing
177610
$8,41 Unit Price incl. VAT
8
Snap ring
006635
$0,25 Unit Price incl. VAT
9
Gasket ring
177443
$1,77 Unit Price incl. VAT
10
Hex screw
1C000291
$0,75 Unit Price incl. VAT
11
Wheel speed sensor
639366
$76,85 Unit Price incl. VAT
12
Hex screw M6x20
018639
$0,16 Unit Price incl. VAT
13
Spacer for timing sensor
646760
$3,65 Unit Price incl. VAT
14
Nut
021114
$0,51 Unit Price incl. VAT
15
Cap
177609
$2,19 Unit Price incl. VAT
16
Split pin
012789
$0,16 Unit Price incl. VAT
17
Tubeless valve
597679
$3,03 Unit Price incl. VAT
18
3.00x13"
1C002667
$298,35 Unit Price incl. VAT
18
Roue avant 3.00 x 13"
1C003635
$186,99 Unit Price incl. VAT
19
(Michelin) Tyre 110/70-13"
2B000757
Not Available
19
Pneu AV 110/70-13"
1C004380
$149,95 Unit Price incl. VAT
20
Rear wheel hub with U.P.
650907
$46,15 Unit Price incl. VAT
21
screw torx
623920
$3,70 Unit Price incl. VAT
22A
Brake disc
1C003375
$60,66 Unit Price incl. VAT
22B
Brake disc D 258
1C000681
$233,55 Unit Price incl. VAT
23
Roller cage
177442
$4,04 Unit Price incl. VAT
24
Bearing
177610
$8,41 Unit Price incl. VAT
25
Snap ring
006635
$0,25 Unit Price incl. VAT
26
Gasket ring
177443
$1,77 Unit Price incl. VAT
27
Hex screw
1C000291
$0,75 Unit Price incl. VAT
28
Nut
021114
$0,51 Unit Price incl. VAT
29
Cap
177609
$2,19 Unit Price incl. VAT
30
Split pin
012789
$0,16 Unit Price incl. VAT
31
Fixed sensor cable assembly
2D000065
Not Available
32
Tubeless valve
597679
$3,03 Unit Price incl. VAT
33
screw
598921
$0,56 Unit Price incl. VAT
34
Spring washer
709047
$0,08 Unit Price incl. VAT
35
Flat washer 8,2x17x2,5
828961
$0,28 Unit Price incl. VAT
36
Phonic wheel Z=60
2B0006075
$26,80 Unit Price incl. VAT
