1
Engine displacement
50
2
Model
RUNNER
3
Year
2005
4
Trim
Runner Pure Jet
5
Parts Catalog

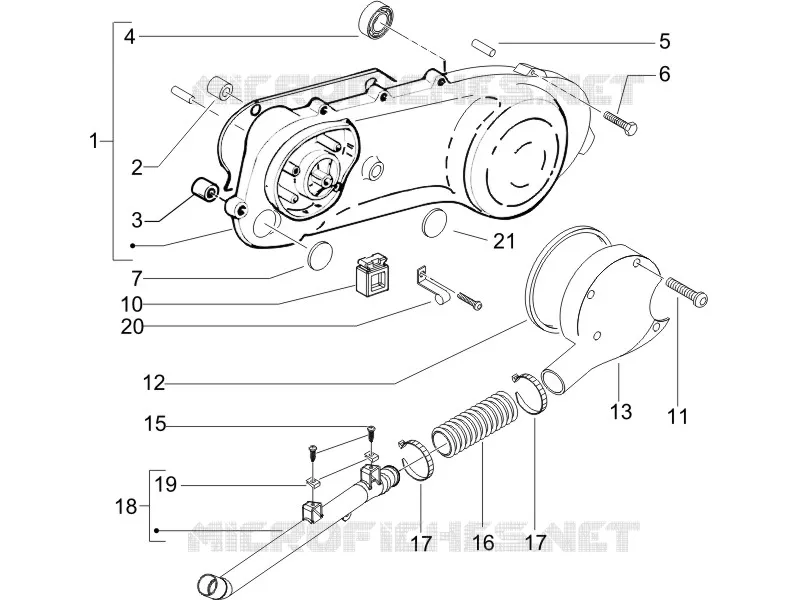

Crankcase cover - Crankcase cooling
6
Parts Diagram
Parts Catalog
Driven pulley
by
Oil pump
Crankcase cover - Crankcase cooling
1
2
3
4
5
6
7
10
11
12
13
15
16
17
17
18
19
20
21
1
Transmission cover
8298225
$93,44 Unit Price incl. VAT
2
Bush
286209
$3,70 Unit Price incl. VAT
3
Bush Ø8xØ12x8
431860
$3,70 Unit Price incl. VAT
4
Bearing
82521R
$9,32 Unit Price incl. VAT
5
Pin 6,5x9,5x15
239388
Not Available
6
screw M6x35
414838
$0,67 Unit Price incl. VAT
7
Cover
483859
$0,29 Unit Price incl. VAT
10
Stand end stop
463872
$0,53 Unit Price incl. VAT
11
screw
435295
$2,99 Unit Price incl. VAT
12
Antidust gasket
482432
$0,48 Unit Price incl. VAT
13
Variator cover
482404
$4,16 Unit Price incl. VAT
15
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
16
Bellows
297049
$13,53 Unit Price incl. VAT
17
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
18
RUNNER TRANS. COOLING DUCT
949547
$11,88 Unit Price incl. VAT
19
Scheibe
CM017411
$5,38 Unit Price incl. VAT
20
Bracket
566063
$4,05 Unit Price incl. VAT
21
Cover
829820
$0,81 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
