1
Engine displacement
50
2
Model
RUNNER
3
Year
2005
4
Trim
Runner Pure Jet
5
Parts Catalog

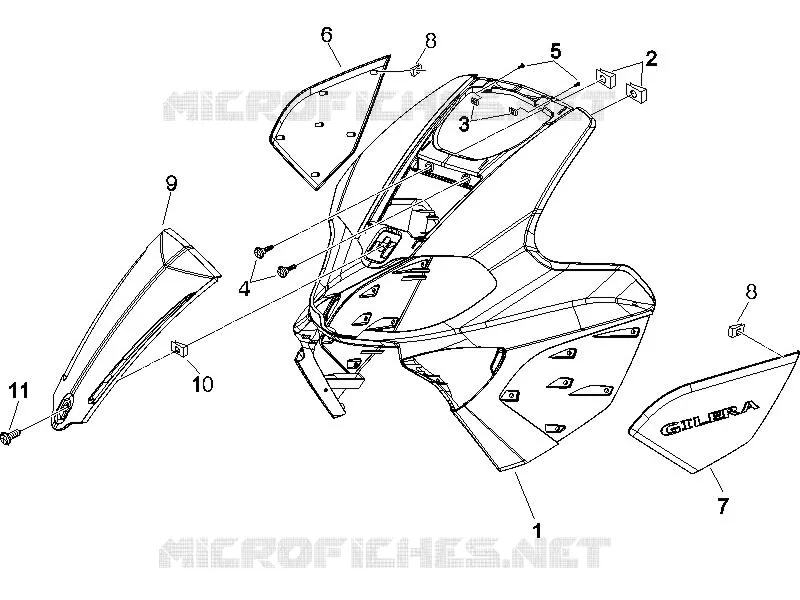

Front shield
6
Parts Diagram
Parts Catalog
Stand/s
by
Front glove-box - Knee-guard panel
Front shield
1
2
3
4
5
6
7
8
8
9
10
11
1
FF SHIELD UNPAINTED
94940000R7
Not Available
1
FF SHIELD UNPAINTED
9494000090
Not Available
1
FF SHIELD PINTAR
94940000BM
Not Available
1
FF SHIELD PINTAR
94940000NF
Not Available
1
FF SHIELD UNPAINTED
949400
Not Available
1
FF SHIELD UNPAINTED
94940000EE
Not Available
2
Spring plate
CM017410
$0,34 Unit Price incl. VAT
3
Spring plate M6
254485
$0,34 Unit Price incl. VAT
4
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
5
Self-tap screw
576189
$0,05 Unit Price incl. VAT
6
RH cover
949402000G
$17,57 Unit Price incl. VAT
7
LH cover
949403000G
$17,36 Unit Price incl. VAT
8
Plate
085508
$2,95 Unit Price incl. VAT
9
HORN COVER RUNNER RST
94940100E1
Not Available
9
COVER
949401
Not Available
10
Spring plate
CM017410
$0,34 Unit Price incl. VAT
11
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
