1
Engine displacement
50
2
Model
RUNNER
3
Year
2005
4
Trim
Runner Pure Jet
5
Parts Catalog
Front wheel
6

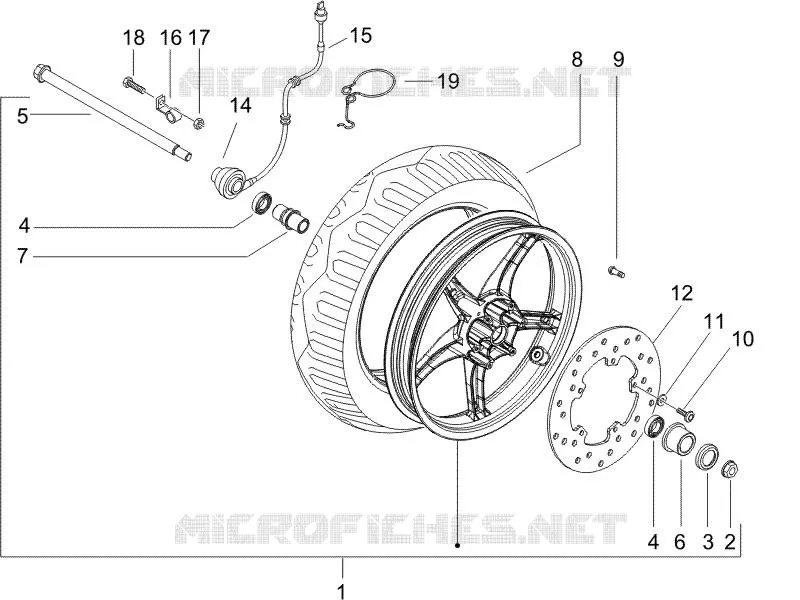

Parts Diagram
Parts Catalog
Rear suspension - Shock absorber/s
by
Rear wheel
Front wheel
1
2
3
4
4
5
6
7
8
9
10
11
12
14
15
16
17
18
19
1
CPL.FRONT WHEEL WITH BEAR
94932600B1
Not Available
2
Nut M12
271740
$0,67 Unit Price incl. VAT
3
Cup
564475
$1,49 Unit Price incl. VAT
3
Guard ring
271744
Not Available
4
Bearing
271745
Not Available
4
Bearing
327187
$11,03 Unit Price incl. VAT
5
Wheel pin
959376
$17,41 Unit Price incl. VAT
6
spacer
959377
Not Available
7
spacer
959378
$6,00 Unit Price incl. VAT
8
Tyre (Pirelli) 120/70-14"
564907
Not Available
8
Tyre (Sava) 120/70-14"
949597
Not Available
9
Tubeless tyre valve
270991
$1,85 Unit Price incl. VAT
10
Hex socket screw M6x20
271147
$0,17 Unit Price incl. VAT
11
Washer 6,4x10x0,7
274706
$0,24 Unit Price incl. VAT
12
Front brake disk
56394R
$101,25 Unit Price incl. VAT
12
Brake disc
564573
Not Available
12
Front brake disk
601749
Not Available
14
Speedometer encoder
58117R
$113,40 Unit Price incl. VAT
14
Speedometer encoder
58014R
Not Available
15
PACKING
CM022201
Not Available
16
Spring
179013
$0,42 Unit Price incl. VAT
17
Self locking nut M6
241936
$0,08 Unit Price incl. VAT
18
Screw w/ flange M6x25
414837
Not Available
19
Hose clamp
639426
$0,17 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
