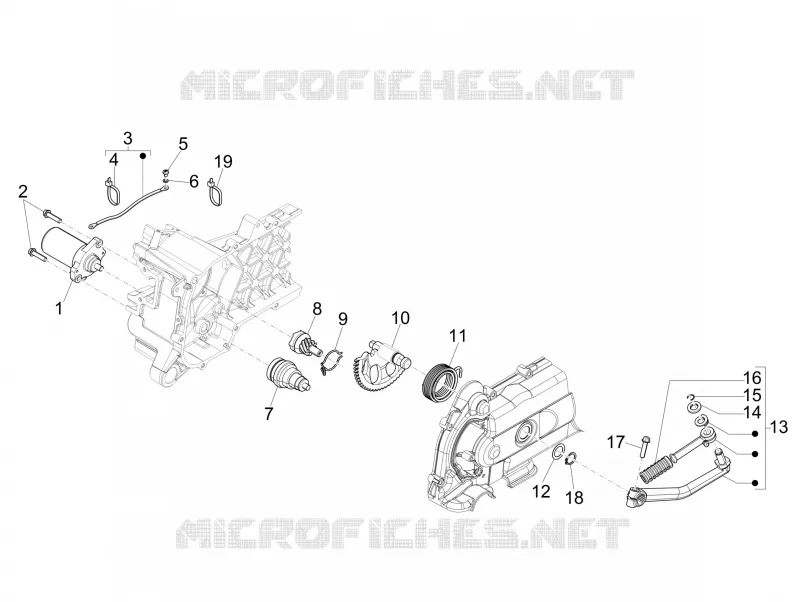

Stater - Electric starter
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
Starter motor
96921R
$115,08 Unit Price incl. VAT
2
Hex screw M6x20
018639
$0,16 Unit Price incl. VAT
3
Starter motor cable unit
680021
$76,65 Unit Price incl. VAT
4
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
5
screw
018644
$3,70 Unit Price incl. VAT
6
Flat washer 4,2x7,6x0,9
016404
$0,42 Unit Price incl. VAT
7
Complete gear unit
96922R
Not Available
8
Pinion starter
483537
$8,63 Unit Price incl. VAT
9
Elastic spring
830212
$0,82 Unit Price incl. VAT
10
Starting shaft
831458
$14,39 Unit Price incl. VAT
11
Starter lever return spring
289495
$15,81 Unit Price incl. VAT
12
Washer 16,3x23,8
433987
$2,99 Unit Price incl. VAT
13
Starter lever
286214
$22,19 Unit Price incl. VAT
14
Washer 10,1x2,5
286219
$8,12 Unit Price incl. VAT
15
Ring
288041
$3,70 Unit Price incl. VAT
16
Guard
286217
$5,45 Unit Price incl. VAT
17
Screw w/ flange M6x25
B016774
$0,34 Unit Price incl. VAT
18
Circlip
006416
$0,08 Unit Price incl. VAT
19
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
