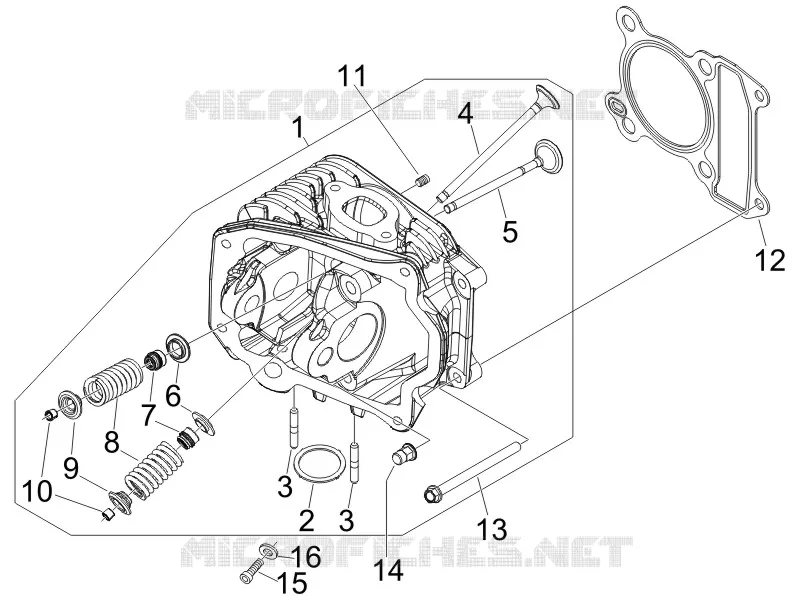

Head unit - Valve
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
Cylinder big end with cam and rocker axis
8461974
$553,92 Unit Price incl. VAT
2
Exhaust pipe gasket
969236
$1,50 Unit Price incl. VAT
3
Stud bolt
016060
$2,99 Unit Price incl. VAT
4
Intake valve
969238
$23,07 Unit Price incl. VAT
5
Exhaust valve
969239
$23,03 Unit Price incl. VAT
6
Cup
289420
$0,77 Unit Price incl. VAT
7
Valve gasket ring
436438
$1,34 Unit Price incl. VAT
8
Valve spring
845782
$4,49 Unit Price incl. VAT
9
Cup
969267
$3,20 Unit Price incl. VAT
10
Valve half-cone
285846
$2,94 Unit Price incl. VAT
11
Pin 6,5x9,5x15
239388
Not Available
12
Cylinder head gasket
969393
$1,98 Unit Price incl. VAT
13
Hex socket screw
319242
$3,70 Unit Price incl. VAT
14
Nut
969224
$0,42 Unit Price incl. VAT
15
Hex socket screw m10x1,5
969972
$0,68 Unit Price incl. VAT
16
Washer 10.5X16X2.5
486075
$1,58 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
