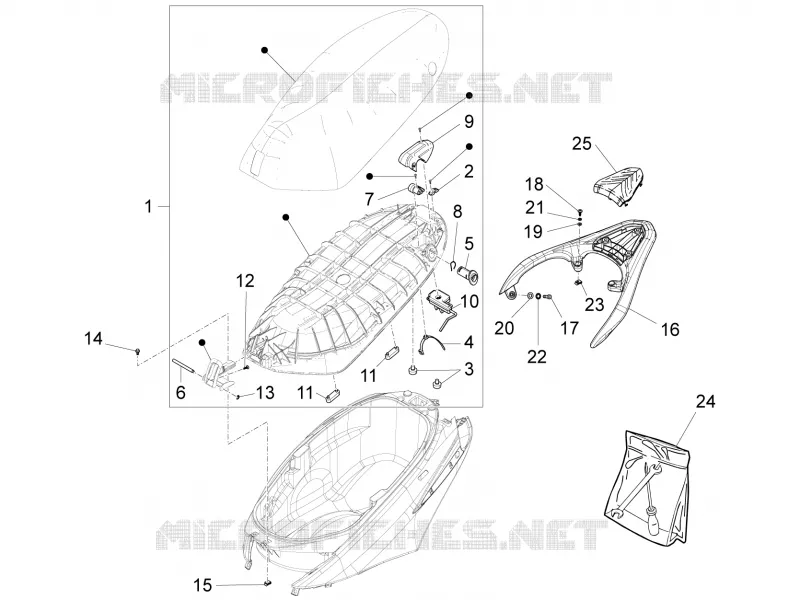

Saddle/seats
1
2
3
4
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
1
Saddle assembly
67453200C1
$258,70 Unit Price incl. VAT
2
Bracket
296743
$5,73 Unit Price incl. VAT
3
Pad
577492
$4,21 Unit Price incl. VAT
4
Hose clamp
298729
$0,34 Unit Price incl. VAT
5
Lock body
673816
$5,38 Unit Price incl. VAT
6
Pin
672633
$3,65 Unit Price incl. VAT
7
Cam
673817
$8,65 Unit Price incl. VAT
8
Spring
672628
$3,65 Unit Price incl. VAT
9
Complete tightening cover
673818
$7,69 Unit Price incl. VAT
10
Saddle lock
673820
$18,75 Unit Price incl. VAT
11
Stop buffer
296456
$2,77 Unit Price incl. VAT
12
Self-tap screw
CM178604
$0,08 Unit Price incl. VAT
13
Ring
005965
$2,95 Unit Price incl. VAT
14
Screw w/ flange M6x14
833722
Not Available
15
Spring plate M6
254485
$0,34 Unit Price incl. VAT
16
Rear luggage rack
5A0001640000C
$40,41 Unit Price incl. VAT
16
Rear luggage rack
6745290095
$197,20 Unit Price incl. VAT
17
Hex socket screw
975840
$3,65 Unit Price incl. VAT
18
Screw metrica
CM179303
$0,34 Unit Price incl. VAT
19
Flat washer 6,4x12x1
003056
$0,08 Unit Price incl. VAT
20
Flat washer 15x8,4x1,5
003058
$0,08 Unit Price incl. VAT
21
Notched washer 6,6x11x0
012533
$0,67 Unit Price incl. VAT
22
Notched washer 14x8,3x1,8
012540
$0,08 Unit Price incl. VAT
23
Spring plate M6
254485
$0,34 Unit Price incl. VAT
24
Tool roll
781235
Not Available
25
Rear carrie cover
674530000C
$7,69 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
