Engine displacement
300
2
Model
BEVERLY
3
Year
2017
4
Trim
Beverly ie ABS E4
5
Parts Catalog
Swinging arm
6
Parts Diagram
Parts Catalog
Helmet huosing - Undersaddle
by
Rear wheel
Swinging arm
1
2
3
4
5
6
7
8
9
10
11
11
11
12
13
14
15
16
17
18
19
20
20
21
22
23
1
Chassis side swinging arm
667295
Not Available
2
Bush
597317
$0,92 Unit Price incl. VAT
3
Roller cage
56127R
$5,55 Unit Price incl. VAT
4
Engine side swinging arm
1C000473R5
$76,77 Unit Price incl. VAT
5
Bush
597317
$0,92 Unit Price incl. VAT
6
Roller cage
56127R
$5,55 Unit Price incl. VAT
7
Hex socket screw
597080
$6,60 Unit Price incl. VAT
8
Spacer L=228 mm
CM067803
$11,11 Unit Price incl. VAT
9
Threaded bush
597774
$15,31 Unit Price incl. VAT
10
Nut m22x2 h=8
564611
$3,65 Unit Price incl. VAT
11
Self locking nut M10
002440
$0,34 Unit Price incl. VAT
12
Hex screw M10x202
271807
$4,41 Unit Price incl. VAT
13
Spacer L=183 mm
CM067801
$6,51 Unit Price incl. VAT
14
screw
597081
$5,20 Unit Price incl. VAT
15
Flat washer
178790
$0,51 Unit Price incl. VAT
16
Hex socket screw
597893
$0,67 Unit Price incl. VAT
17
Self locking nut M10
002440
$0,34 Unit Price incl. VAT
18
Silent block support bracket
666250
$68,22 Unit Price incl. VAT
19
Silent-block
272750
$12,52 Unit Price incl. VAT
20
Bush
273460
$0,75 Unit Price incl. VAT
21
Circlip
006416
$0,08 Unit Price incl. VAT
22
Silent-block
599250
$8,65 Unit Price incl. VAT
23
Spring
597490
$4,82 Unit Price incl. VAT

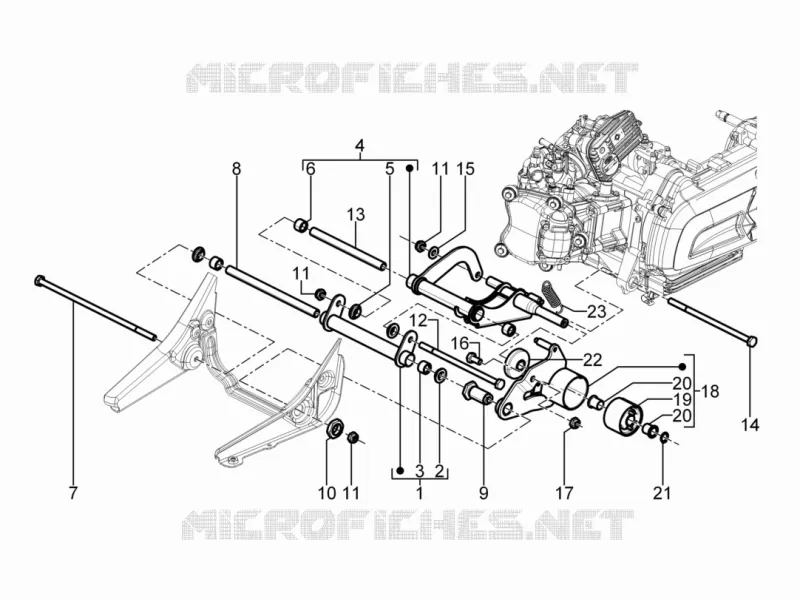

Find the detailed Swinging arm GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
