1
Engine displacement
300
2
Model
BEVERLY
3
Year
2017
4
Trim
Beverly ie ABS E4
5
Parts Catalog
Flywheel magneto
6
Parts Diagram
Parts Catalog
Flywheel magneto cover - Oil filter
by
Brakes pipes - Calipers (ABS)
Flywheel magneto
1
2
2
3
4
5
6
7
1
Stator Ducati
642071
Not Available
1
Stator (Kokusan)
642054
$114,75 Unit Price incl. VAT
2
Low head socket screw M6x30
122637
$0,28 Unit Price incl. VAT
3
Self-tapping screw M5x12
015585
$0,08 Unit Price incl. VAT
4
Complete freewheel rotor
58226R
Not Available
5
Special nut
82952R
$5,90 Unit Price incl. VAT
6
Plain washer
842385
$0,68 Unit Price incl. VAT
7
Transmission key
000097
$5,21 Unit Price incl. VAT

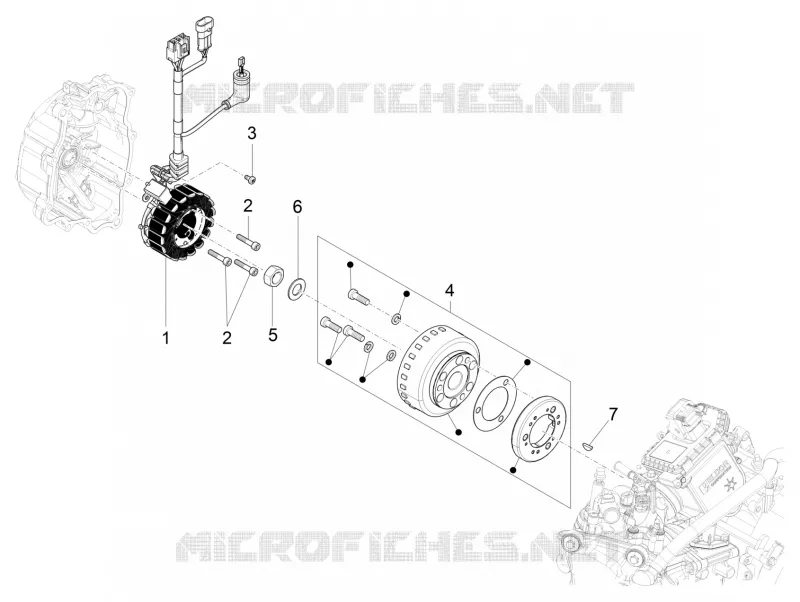

Find the detailed Flywheel magneto GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
