1
Engine displacement
300
2
Model
BEVERLY
3
Year
2017
4
Trim
Beverly ie ABS E4
5
Parts Catalog
Handlebars - Master cil.
6
Parts Diagram
Parts Catalog
Cylinder-piston-wrist pin unit
by
Rear suspension - Shock absorber/s
Handlebars - Master cil.
1
2
3
4
5
6
7
8
9
10
11
11
12
12
13
14
15
16
17
18
19
19
1
Handlebar with U.P.
6737075
Not Available
2
Hex socket screw
668874
$2,95 Unit Price incl. VAT
3
Flat washer
178790
$0,51 Unit Price incl. VAT
4
Flat elastic washer with internal toothing 17x10,3x2
012543
$0,08 Unit Price incl. VAT
5
Nut M10
015330
$0,25 Unit Price incl. VAT
6
Throttle control sleeve assembly
58608R
$54,12 Unit Price incl. VAT
7
Grip, r.h.
CM084202
$7,02 Unit Price incl. VAT
8
Throttle opening transmission
665974
Not Available
9
Throttle closing transmission
665975
Not Available
10
Grip, l.h.
CM084201
$7,02 Unit Price incl. VAT
11
End terminal
271433
$20,41 Unit Price incl. VAT
11
Handlebar terminal
673339
$2,66 Unit Price incl. VAT
12
screw M6x55
271434
Not Available
13
Left brake hydraulic pump ABS
CM089804
$241,47 Unit Price incl. VAT
14
Brake lever
668417
$26,06 Unit Price incl. VAT
15
Bracket
668535
$58,69 Unit Price incl. VAT
16
Right brake hydraulic pump ABS
CM089802
$241,47 Unit Price incl. VAT
17
Brake lever
668417
$26,06 Unit Price incl. VAT
18
Bracket
668387
$58,69 Unit Price incl. VAT
19
Spring
657046
$3,65 Unit Price incl. VAT

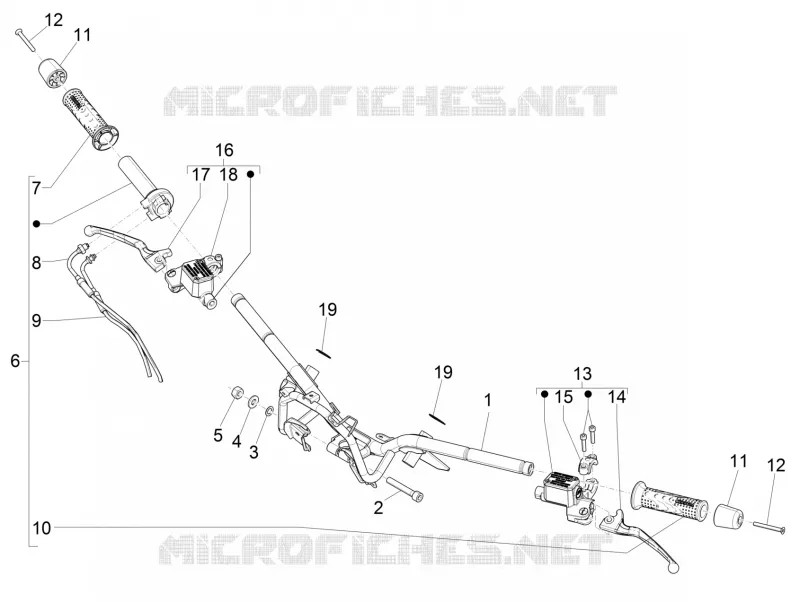

Find the detailed Handlebars - Master cil. GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
