Crankcase for GILERA PIAGGIO VESPA Beverly Cruiser E3 from 2008

Crankcase

1

Crank-case

8462875001

Not Available

1

Crank-case

8462875002

Not Available

3

Pin 6,5x9,5x15

239388

Not Available

4

Plug M12x1,5

411311

$0,67 Unit Price incl. VAT

5

UGELLO CALIBRATO

484034

$6,44 Unit Price incl. VAT

6

Pin 6,5x9,5x15

239388

Not Available

7

Radial ball bearing 15x42x13

485912

Not Available

8

Radial ball bearing 20x47x14

833701

Not Available

9

PERNO AGG. MOLLE CAVALLETTO

483785

$5,45 Unit Price incl. VAT

10

SILENTBLOC ATT.MOTORE

486081

$6,73 Unit Price incl. VAT

12

Circlip 25x26.9x1.2

000674

Not Available

13

Gasket ring

82539R

Not Available

13

ANELLO DI TENUTA 20-32-7

82878R

$10,25 Unit Price incl. VAT

15

Locating dowel Ã˜11x10

478115

$0,24 Unit Price incl. VAT

16

UGELLO CALIBRATO PER CARTER D.1,1

844582

$0,05 Unit Price incl. VAT

17

Screw M5x10

018575

$2,95 Unit Price incl. VAT

17

screw

847233

$3,65 Unit Price incl. VAT

18

Stud bolt

840332

Not Available

19

GRANO DI RIFERIMENTO (Ø7,5, H=12)

277916

$0,34 Unit Price incl. VAT

20

screw M6x60

432142

$0,19 Unit Price incl. VAT

21

Half crankcase gasket

845212

Not Available

21

GUARNIZIONE SEMICARTER

875111

$3,34 Unit Price incl. VAT

22

PARATIA OLIO

483767

$0,38 Unit Price incl. VAT

23

PARATIA OLIO SUPERIORE

485047

$0,48 Unit Price incl. VAT

24

VITE A TESTA ESAGONALE FLANGIATA

830061

$0,34 Unit Price incl. VAT

25

INSERTO PORTA FILTRO COMPL.

845861

$3,82 Unit Price incl. VAT

26

GUARNIZIONE SEZ.CIRCOLARE

431065

$0,42 Unit Price incl. VAT

27

MOLLA VALVOLA PRESS.OLIO

485655

$1,26 Unit Price incl. VAT

28

ASTA LIVELLO OLIO COMPL.

832130

$2,94 Unit Price incl. VAT

29

ANELLO DI TENUTA (O-RING)

827085

$2,99 Unit Price incl. VAT

30

VALVOLA REGOL.PRESSIONE OLIO

829661

$6,44 Unit Price incl. VAT

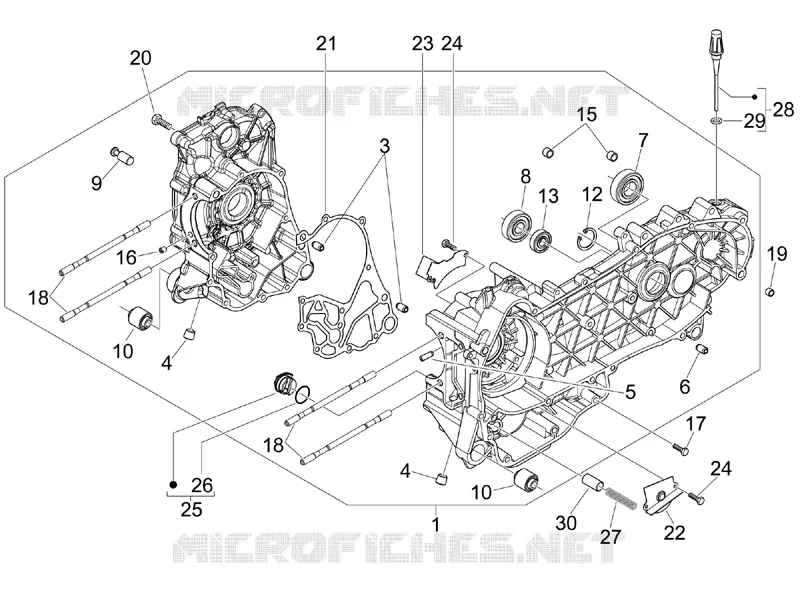

Find the detailed Crankcase GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
