Swinging arm for GILERA PIAGGIO VESPA Beverly Cruiser E3 from 2008

Swinging arm

1

Chassis side swinging arm

56443R

Not Available

1

COMPLETE CHASSIS SIDE SWINGING ARM

56335R

Not Available

2

Roller cage

597374

Not Available

3

DISTANZIALE

CM067801

$6,51 Unit Price incl. VAT

4

Swinging arm

598799

$75,98 Unit Price incl. VAT

5

Roller cage

597374

Not Available

6

MOLLA

597490

$4,82 Unit Price incl. VAT

7

STAFFA SUPP.SILENT.COMP.

600537

$70,25 Unit Price incl. VAT

8

SILENT BLOCK

272750

$12,52 Unit Price incl. VAT

9

BUSSOLA

273460

$0,75 Unit Price incl. VAT

10

DISTANZIALE

CM067803

$11,11 Unit Price incl. VAT

11

ANELLO ELASTICO

006416

$0,08 Unit Price incl. VAT

12

DADO FLANG.AUTOFR.TRIB M10 6H CH.15

564878

$2,99 Unit Price incl. VAT

13

VITE TESTA ES. INTERAMENTE FILETTATO

597893

$0,67 Unit Price incl. VAT

14

BUSSOLA FILETTATA

597774

$15,31 Unit Price incl. VAT

15

VITE TESTA ESAG. PARZIALM. FILETTATO

597081

$5,20 Unit Price incl. VAT

16

VITE TESTA ESAG. PARZIALM. FILETTATO

597080

$6,60 Unit Price incl. VAT

17

DADO FLANG.AUTOFR.TRIB M10 6H CH.15

564878

$2,99 Unit Price incl. VAT

18

DADO

564611

$3,65 Unit Price incl. VAT

19

VITE

271807

$4,41 Unit Price incl. VAT

20

Self locking nut M10

232108

Not Available

21

DADO AUTOFR. M10-6H CH.17

231370

$0,38 Unit Price incl. VAT

22

DADO AUTOFRENANTE M10

002440

$0,34 Unit Price incl. VAT

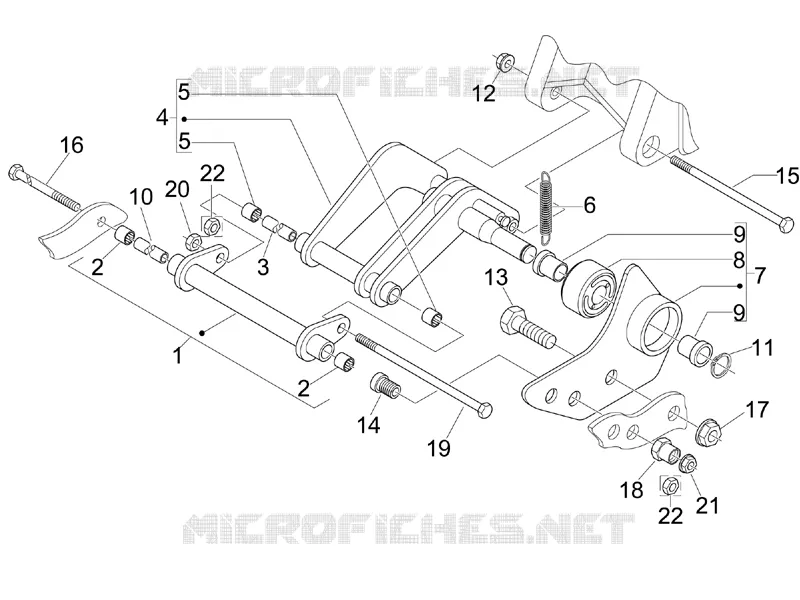

Find the detailed Swinging arm GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
