Cooling system for GILERA PIAGGIO VESPA Beverly Cruiser E3 from 2008

Front glove-box - Knee-guard panel

Front headlamps - Turn signal lamps

Cooling system

1

Coolant tank

624598

Not Available

2

PIASTRINA ELASTICA M6

254485

$0,34 Unit Price incl. VAT

3

TAPPO SERB.LIQUIDO RAF

623673

$15,97 Unit Price incl. VAT

7

Metric screw M6x20

259830

$0,09 Unit Price incl. VAT

8

GUARNIZIONE SERBATOIO ESP.

620737

$4,82 Unit Price incl. VAT

9

FASCETTA STRINGITUBO

CM001904

$0,75 Unit Price incl. VAT

10

FASCETTA STRINGITUBO(D.30,8 S.0,6 L.7)

CM001908

$3,65 Unit Price incl. VAT

11

FASCETTA STRINGITUBO

CM001914

$0,75 Unit Price incl. VAT

12

FASCETTA STRINGITUBO (D.28,6 S.0,6 L.7)

CM001915

$1,03 Unit Price incl. VAT

13

MOLLETTA RITEGNO TUBI

CM006903

$1,43 Unit Price incl. VAT

14

FASCETTA STRINGITUBO (D.30,1 S.0,6 L.7)

CM001922

$3,65 Unit Price incl. VAT

15

RONDELLA PIANA METALLICA

013880

$0,08 Unit Price incl. VAT

16

DADO AUTOFR.TRIBLOC M6 6H

195482

$0,19 Unit Price incl. VAT

17

RONDELLA D6,2XD20X1

013092

$0,17 Unit Price incl. VAT

18

TAMPONE

258904

$0,25 Unit Price incl. VAT

19

Metric screw M6x20

259830

$0,09 Unit Price incl. VAT

20

DISTANZIALE

273288

$1,01 Unit Price incl. VAT

21

TAMPONE ELASTICO

351782

$0,34 Unit Price incl. VAT

22

MOLLETTA RITEGNO TUBI

582153

$5,38 Unit Price incl. VAT

23

PIASTRINA ELASTICA M6

254485

$0,34 Unit Price incl. VAT

24

VITE METRICA CON INT.A CROCE M6x16.

272836

$3,70 Unit Price incl. VAT

25

PUMP-RADIATOR PIPE JOINT PIPE

623950

Not Available

25

TUBO COLL.POMPA/RADIATORE

656442

$21,37 Unit Price incl. VAT

26

RETUN PIPE B250

624597

$8,16 Unit Price incl. VAT

28

GUARNIZIONE INIETTORE

168077

$3,65 Unit Price incl. VAT

29

GR.RADIATORI ACQUA

57311R

$93,31 Unit Price incl. VAT

29

RADIATORE ACQUA

656528

$77,93 Unit Price incl. VAT

30

FASCETTA A STRAPPO

145298

$0,08 Unit Price incl. VAT

32

Electric fan

58170R

Not Available

32

Complete electric fan

640389

Not Available

32

Fan engine

621030

Not Available

33

TUBI RITORNO RADIATORE/SERB.LIQUIDO

CM007015

$24,90 Unit Price incl. VAT

33

Cooler-tank return pipe

576722

Not Available

35

PIASTRA SUPPORTO ELETTROVENTILATORE

620672

$5,38 Unit Price incl. VAT

36

TAPPO M14X1,5

621365

$4,82 Unit Price incl. VAT

37

Head coupling tube

623949

Not Available

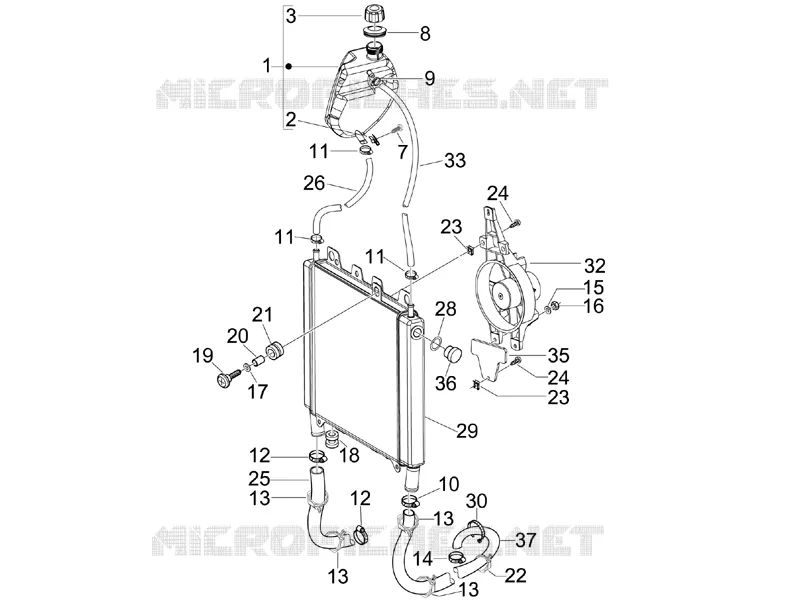

Find the detailed Cooling system GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
