Oil pump for GILERA PIAGGIO VESPA Beverly Sport E3 from 2007

Oil pump

1

Oil pump assembly

844352

Not Available

1

Oil pump assembly

82877R

Not Available

2

Carter-oil pump gasket

486082

$0,29 Unit Price incl. VAT

2

GUARNIZIONE CARTER/POMPA OLIO

847929

$0,34 Unit Price incl. VAT

3

VITE A TESTA ESAGONALE FLANGIATA

829593

$0,50 Unit Price incl. VAT

4

COPPA DELL'OLIO MOTORE

846096

$11,92 Unit Price incl. VAT

5

GUARNIZIONE CARTER/COPPA OLIO

846098

$3,28 Unit Price incl. VAT

6

TAPPO OLIO COMPLETO

843364

$1,39 Unit Price incl. VAT

7

O-ring

479986

Not Available

8

GRANO DI RIFERIMENTO (Ø7,5, H=12)

277916

$0,34 Unit Price incl. VAT

9

COPERCHIO DISTRIBUZIONE

847116

$22,74 Unit Price incl. VAT

9

Timing system cover

483775

$16,82 Unit Price incl. VAT

10

VITE TCIC M5X12

015585

$0,08 Unit Price incl. VAT

11

Plain washer

487937

$0,09 Unit Price incl. VAT

12

TAMPONE CATENA POMPA OLIO.

434345

$2,77 Unit Price incl. VAT

13

ANELLO DI TENUTA (O-R)

825620

$8,21 Unit Price incl. VAT

14

CATENA POMPA OLIO (50 PS)

82649R

$13,37 Unit Price incl. VAT

15

PIGNONE COM.POMPA OLIO

82783R

$7,99 Unit Price incl. VAT

16

ANELLO DI TENUTA k7

82538R

$8,01 Unit Price incl. VAT

17

ASTA TENDICATENA

840510

$2,15 Unit Price incl. VAT

18

Screw w/ flange M6x25

414837

Not Available

19

Chain tensioner rod spacer

485868

$0,29 Unit Price incl. VAT

20

COMPLESSIVO TENDICATENA

82650R

$34,52 Unit Price incl. VAT

21

GUARNIZIONE CIL./SUPP.TENDICATENA

847928

$0,42 Unit Price incl. VAT

22

Screw w/ flange M6x16

434541

$0,09 Unit Price incl. VAT

23

ANELLO DI TENUTA (O-RING)

825952

$0,15 Unit Price incl. VAT

24

PIGNONE DISTRIBUZIONE

82782R

$7,06 Unit Price incl. VAT

25

Camshaft chain

82644R

Not Available

26

PATTINO FISSO

828308

$1,34 Unit Price incl. VAT

27

MOLLA A TAZZA

436695

$0,59 Unit Price incl. VAT

28

Screw w/ flange M6x14

833722

Not Available

29

Screw w/ flange M6x30

289731

Not Available

30

RONDELLA PARAOLIO

483918

$0,53 Unit Price incl. VAT

31

FASCETTA

564629

$2,50 Unit Price incl. VAT

32

CORONA POMPA OLIO

287913

$6,47 Unit Price incl. VAT

33

COPERCHIO DISTRIBUZIONE

847116

$22,74 Unit Price incl. VAT

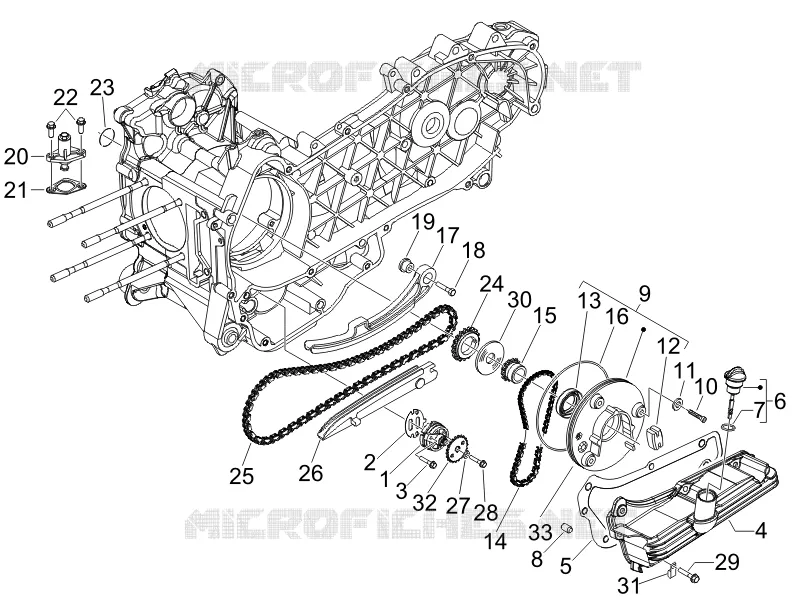

Find the detailed Oil pump GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
