Rear suspension - Shock absorber/s for GILERA PIAGGIO VESPA Beverly Sport E3 from 2007

Rear suspension - Shock absorber/s

1

Shock absorber

56174R

$85,05 Unit Price incl. VAT

2

Housing

274860

Not Available

3

Self locking nut M10

232108

Not Available

3

DADO AUTOFRENANTE M10

002440

$0,34 Unit Price incl. VAT

4

VITE A TESTA ESAGONALE FLANG. PAR. FIL.

268158

$1,26 Unit Price incl. VAT

5

Bush

597980

$3,65 Unit Price incl. VAT

6

VITE TE PARZ.FIL. M10x45 UNI 5737-65

015578

$2,99 Unit Price incl. VAT

7

VITE T.C.E.I. M8X50

844483

$0,67 Unit Price incl. VAT

8

DADO M8-6H

020008

$0,08 Unit Price incl. VAT

9

Self locking nut M10

232108

Not Available

9

DADO AUTOFRENANTE M10

002440

$0,34 Unit Price incl. VAT

10

Washer

016627

Not Available

11

Washer

709646

Not Available

12

STAFFA FISS.AMM.POSTER

597979

$8,16 Unit Price incl. VAT

13

Suspension arm

599867

$94,50 Unit Price incl. VAT

14

ANELLO ELASTICO 47x50,5x1,75

006647

$1,10 Unit Price incl. VAT

15

CUSCINETTO RADIALE RIGIDO

82545R

$12,11 Unit Price incl. VAT

16

Nut hold cap

194423

$0,48 Unit Price incl. VAT

17

VITE A TESTA CILINDRICA

826298

$0,66 Unit Price incl. VAT

18

DADO ESAGONALE NORMALE

563728

$1,42 Unit Price incl. VAT

19

RONDELLA PIANA 16,5x8,1x1,5

013776

$0,34 Unit Price incl. VAT

20

RONDELLA ELAST.ONDULATA (D15 F8,6)

709047

$0,08 Unit Price incl. VAT

21

COPIGLIA

012789

$0,16 Unit Price incl. VAT

22

DISTANZIALE

597528

$1,51 Unit Price incl. VAT

24

DISTANZIALE RUOTA

848039

$18,12 Unit Price incl. VAT

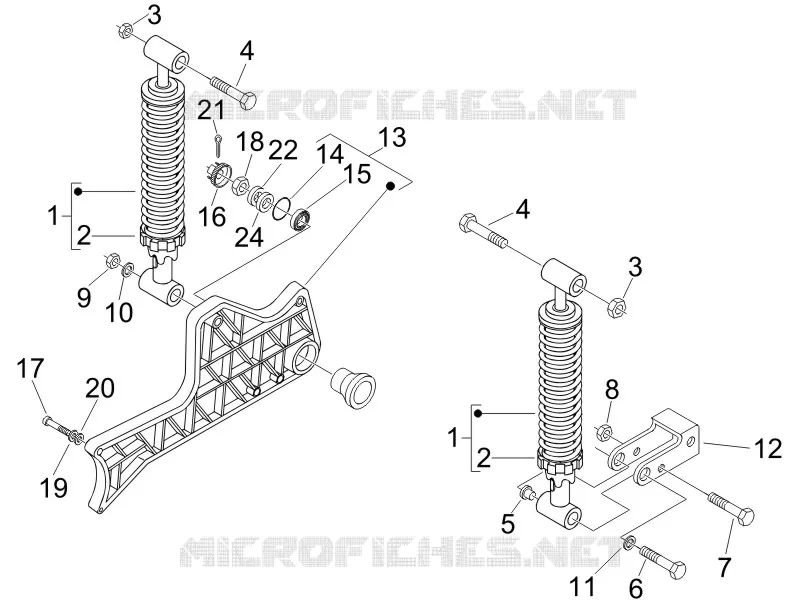

Find the detailed Rear suspension - Shock absorber/s GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
